XL900

Indoor & Outdoor

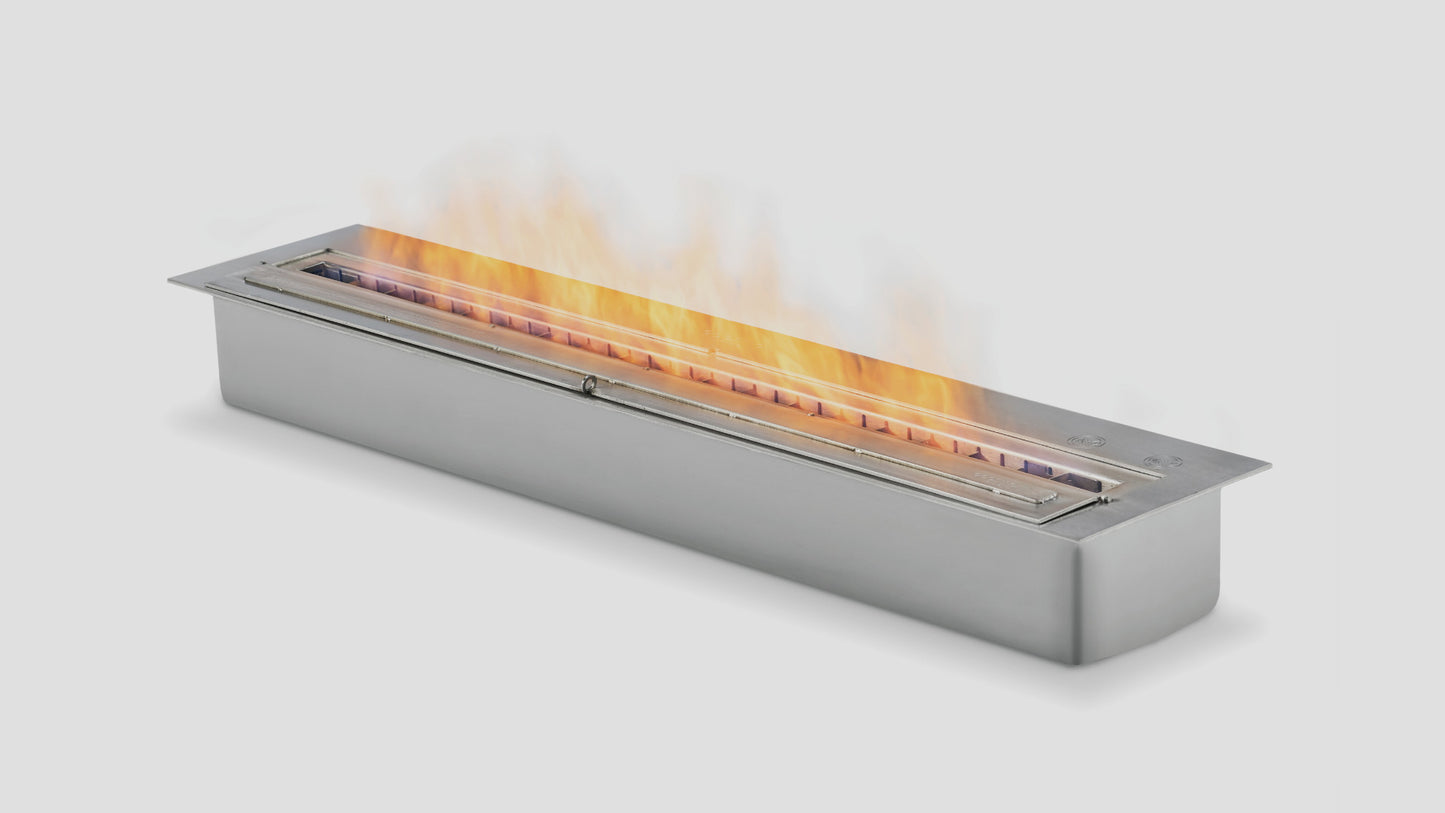

The EcoSmart XL900 is a 9 litre ethanol burner insert for custom fireplaces, fire pit tables and fire features. It gives 8 to 13 hours of flame at about 4.4 kW, enough for a room of around 60 m². Indoors it must be installed with a Top Tray.

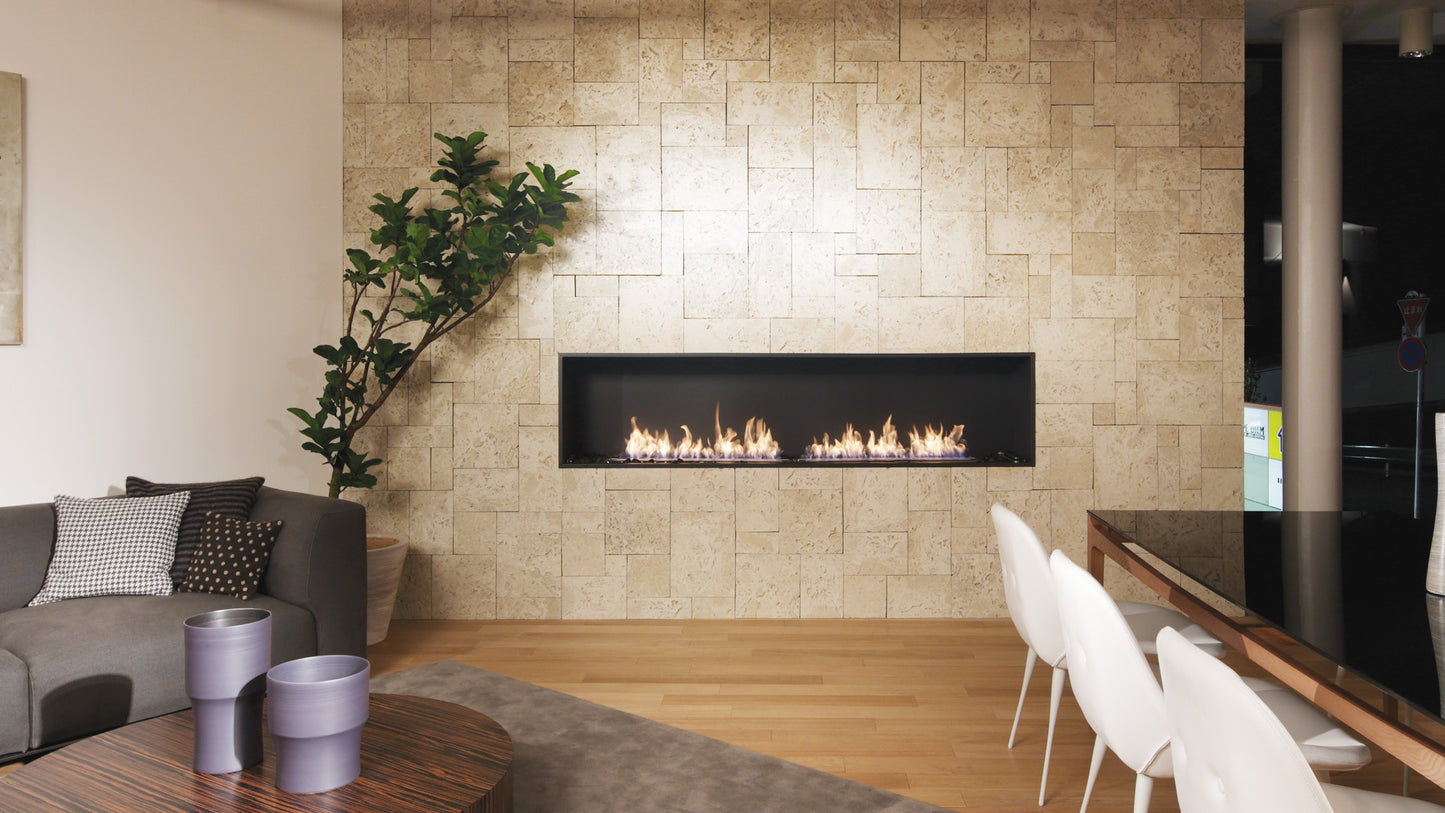

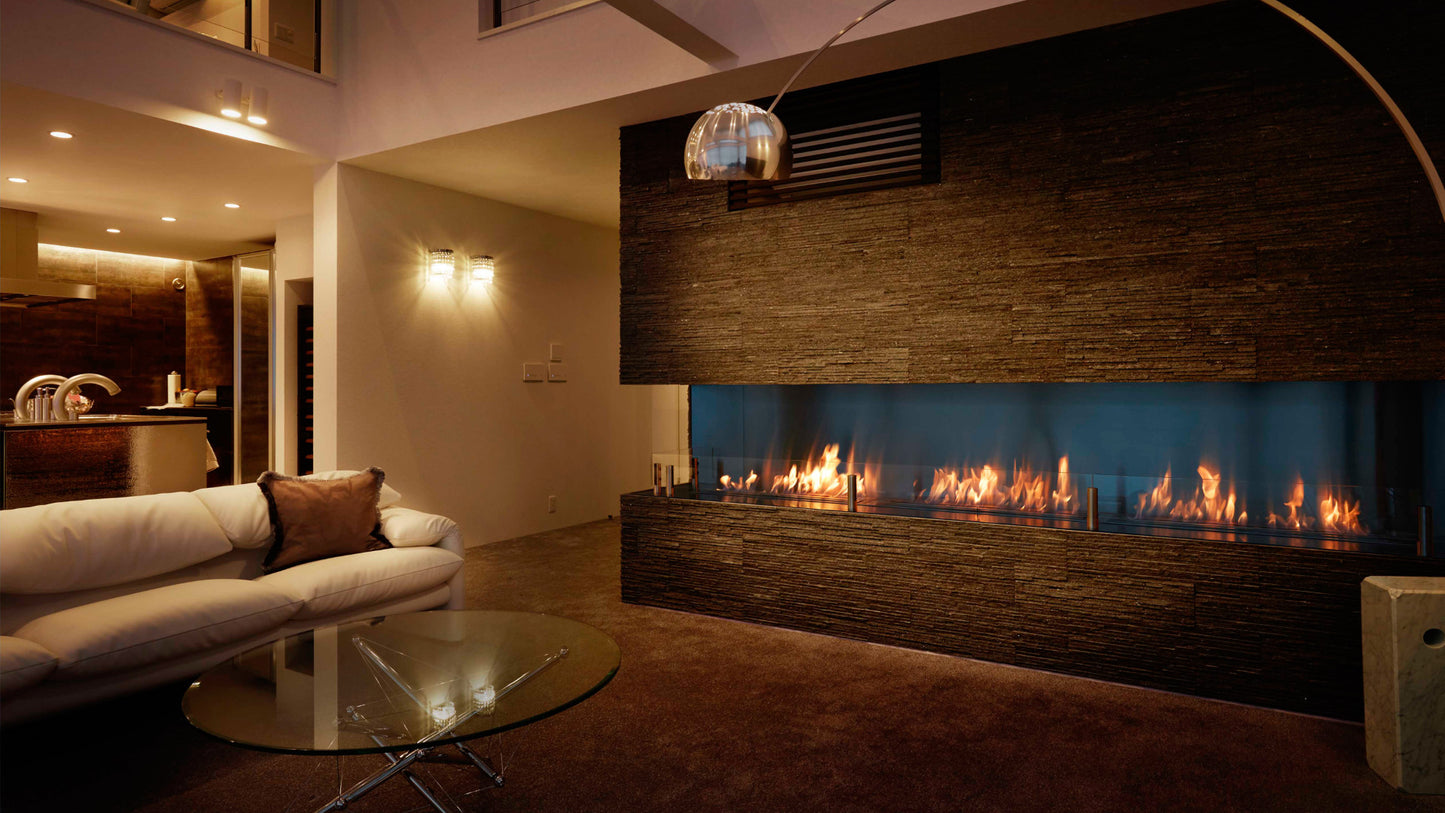

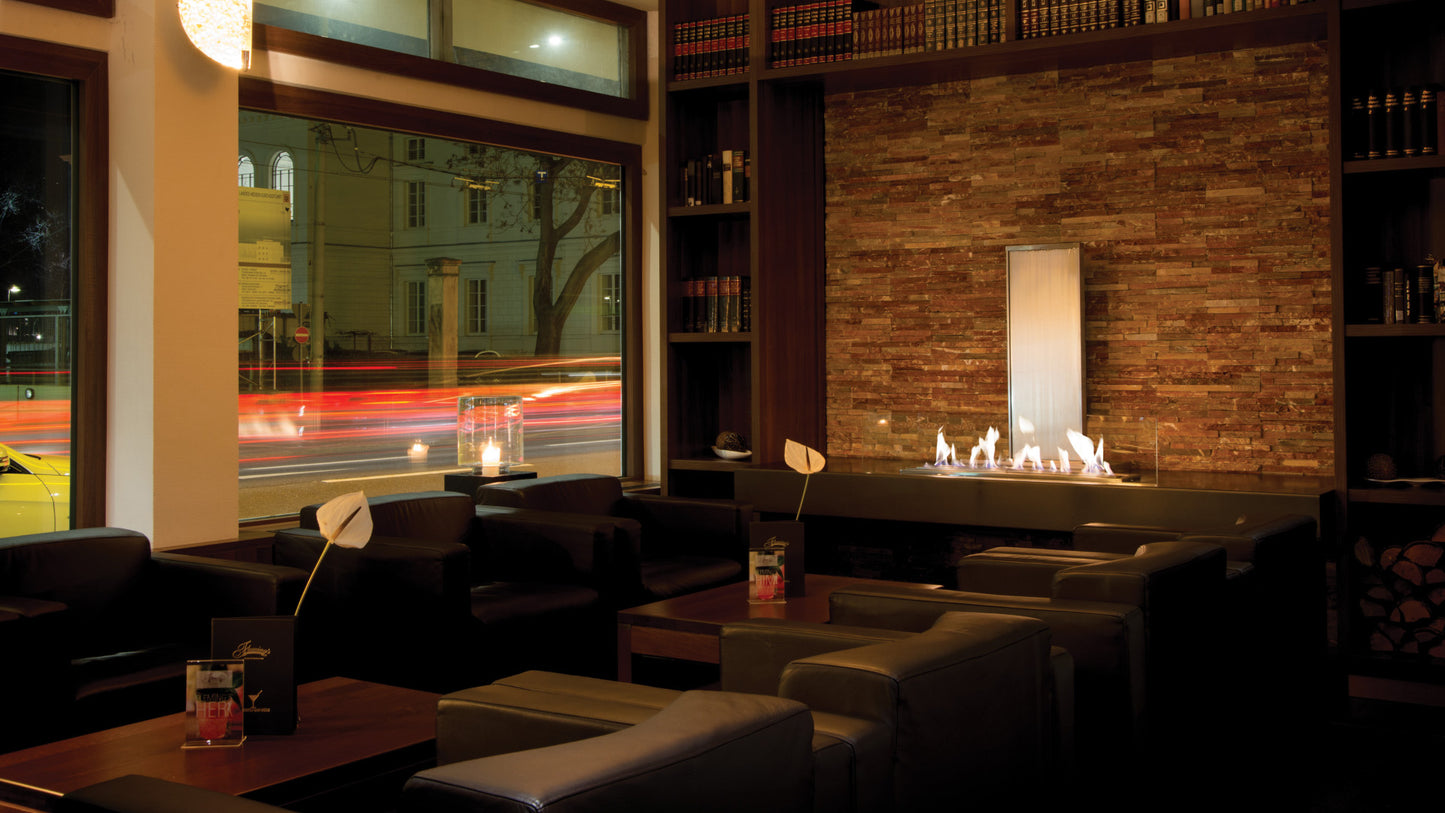

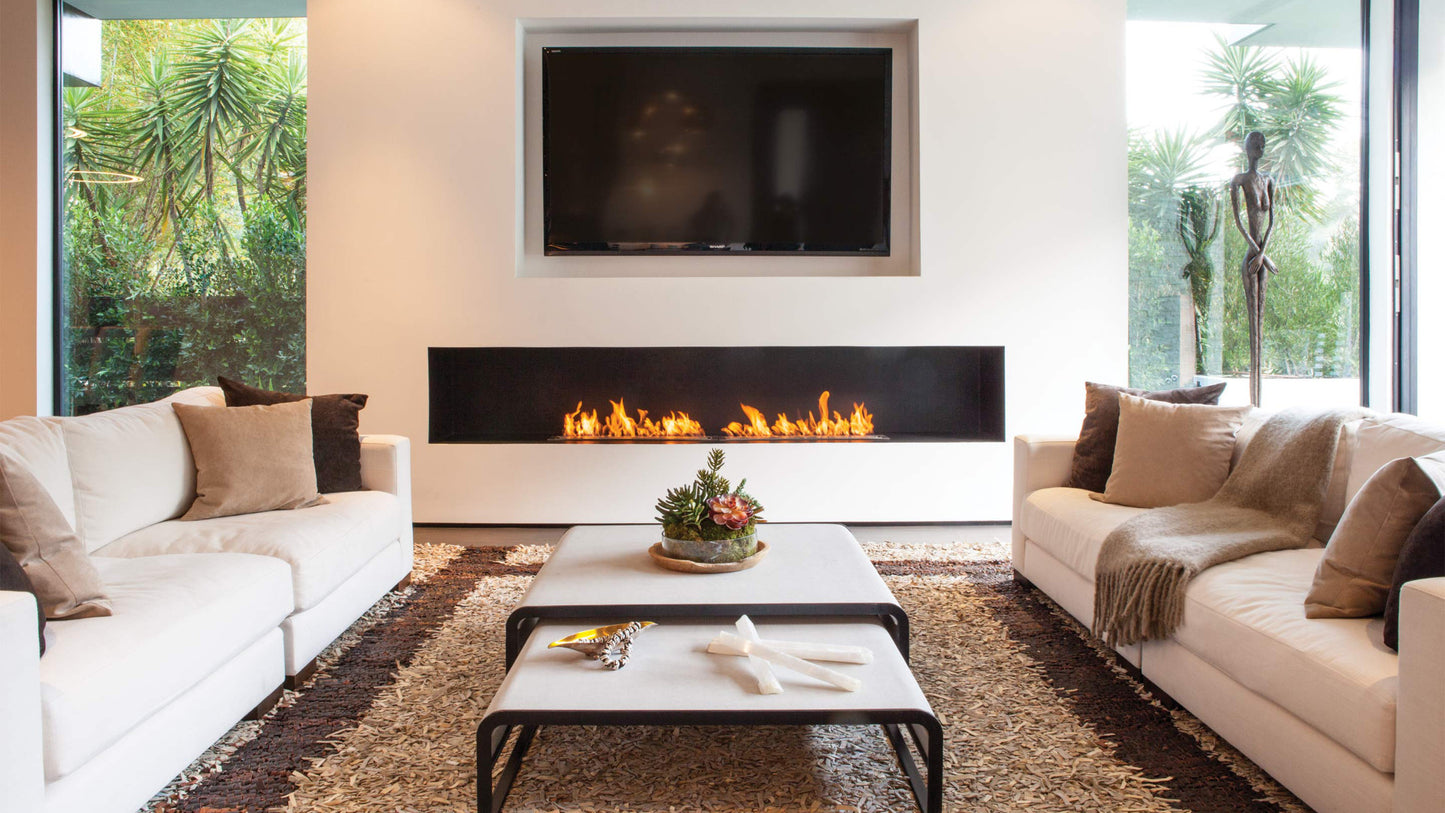

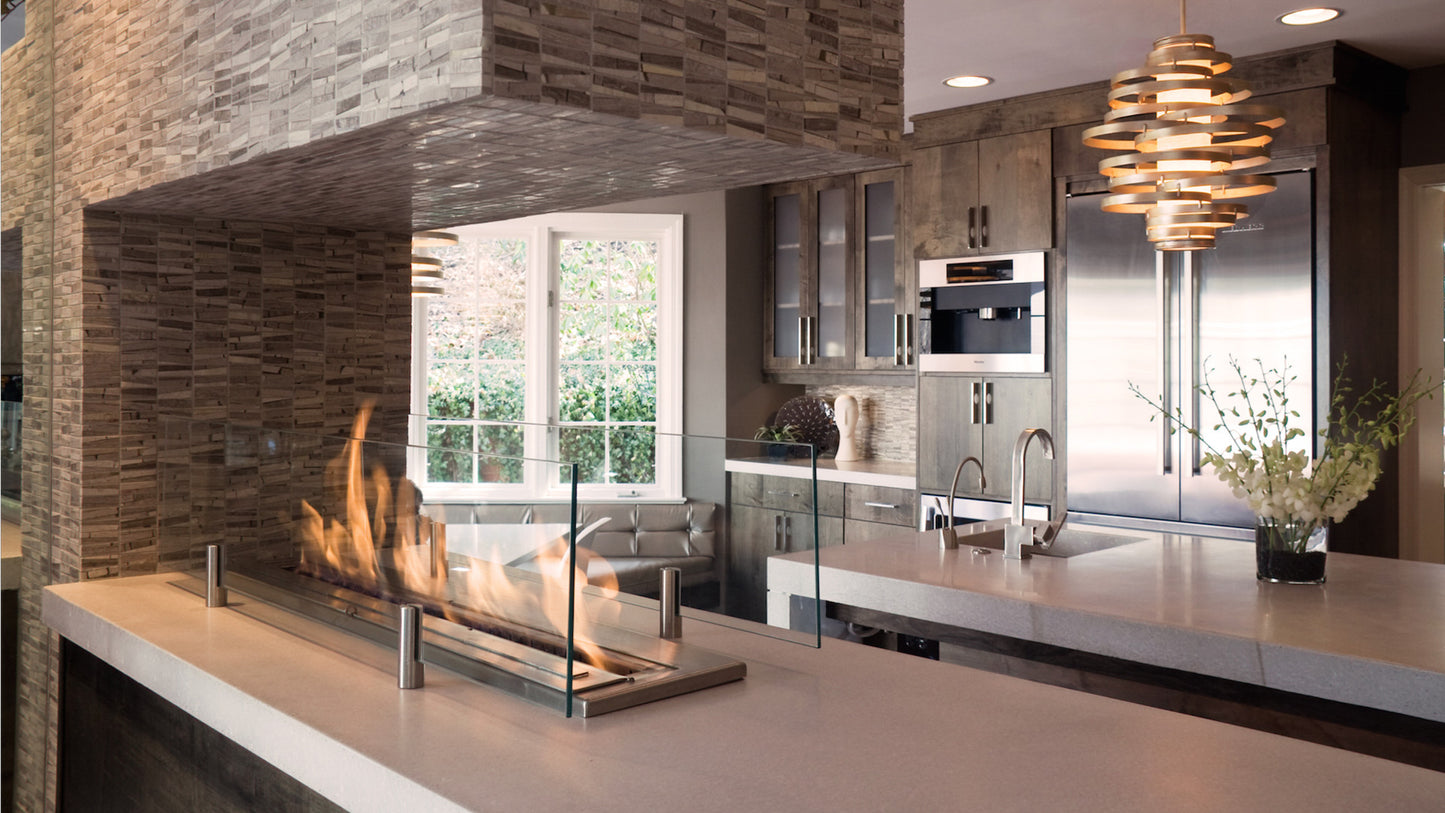

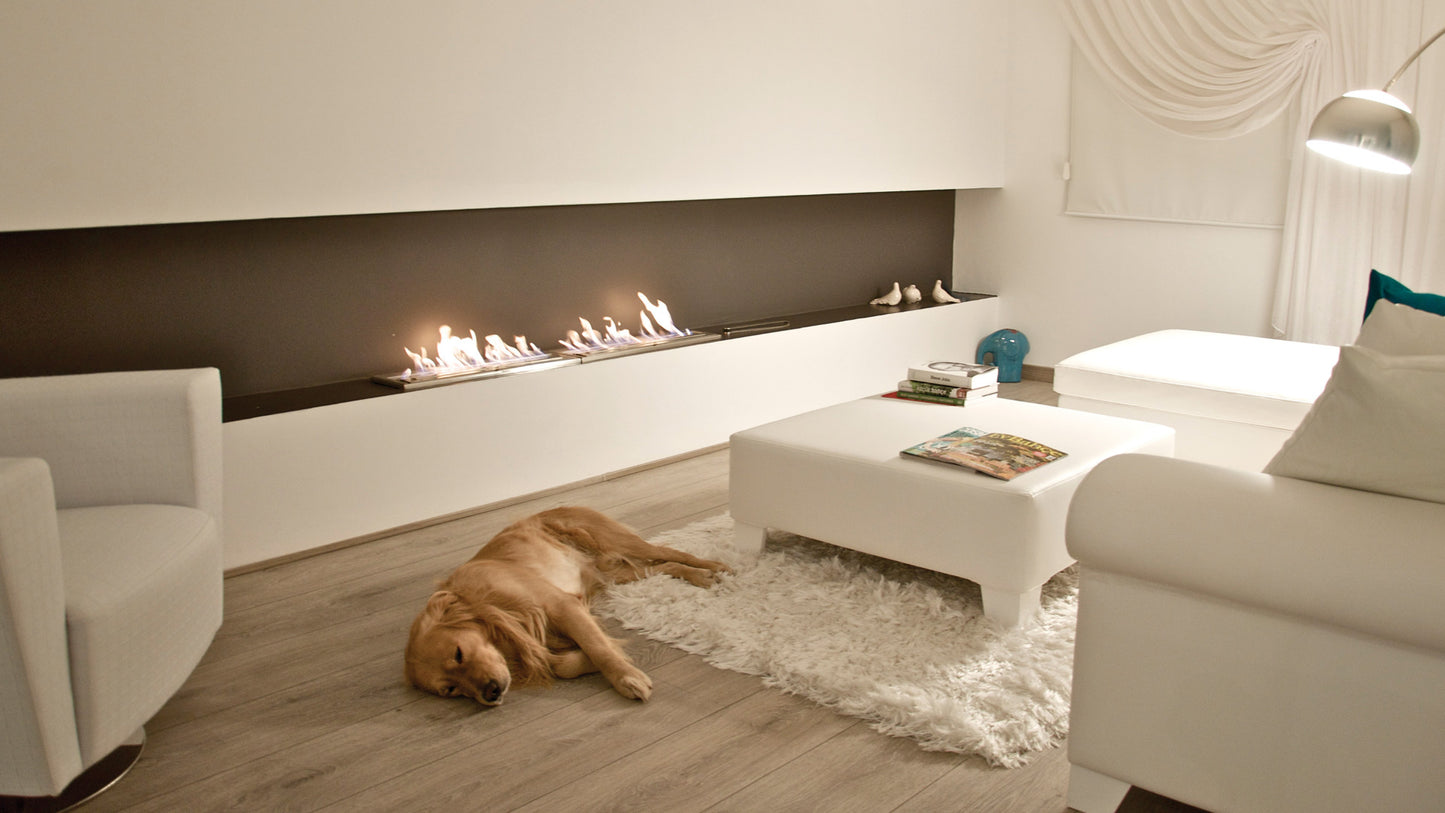

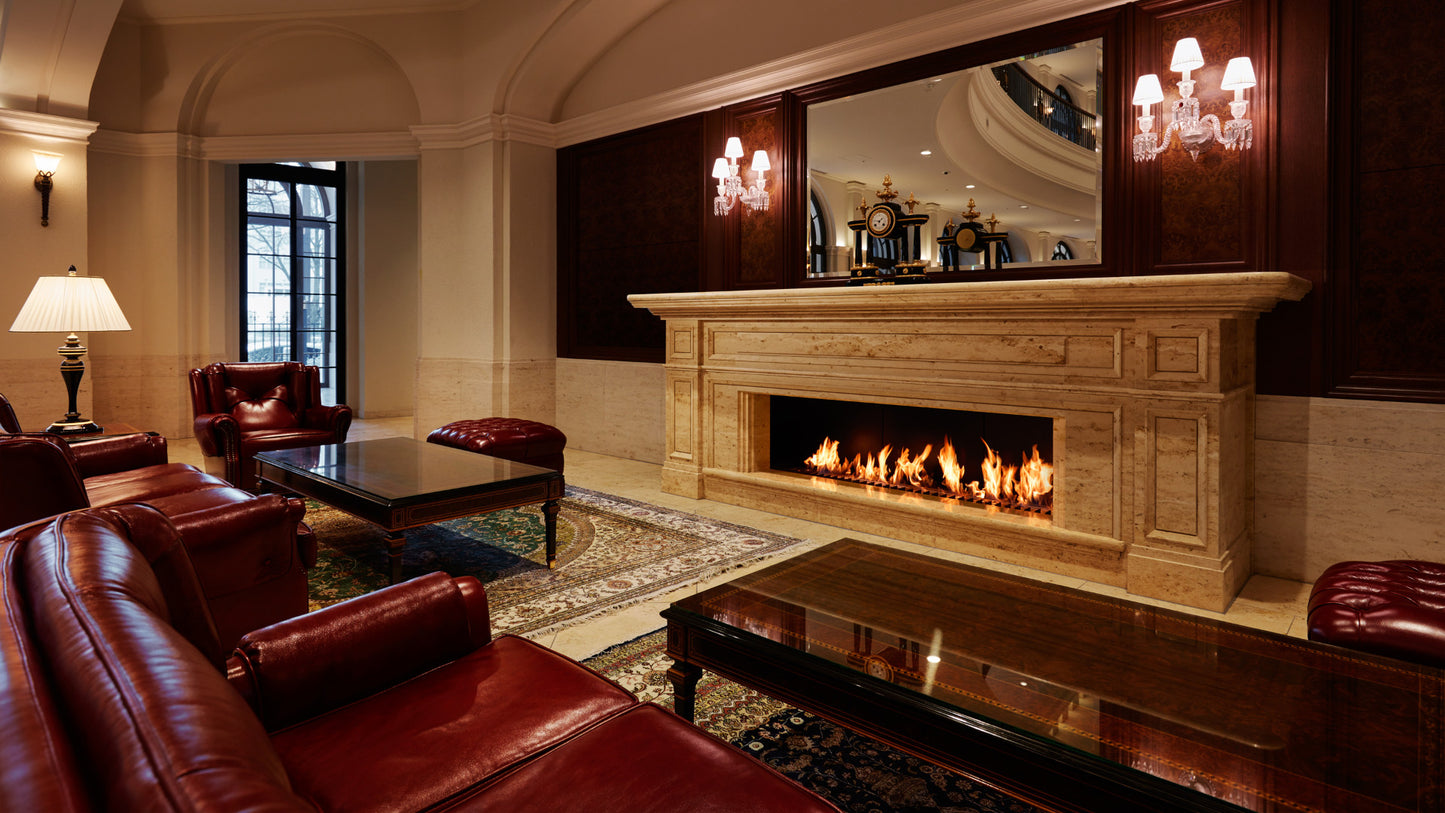

The EcoSmart XL900 Ethanol Burner is a premium linear bioethanol burner designed to create striking elongated flames in custom indoor and outdoor fireplaces. As one of the most popular burners in the EcoSmart XL Series, the XL900 is engineered to deliver a long, vibrant flame that enhances modern architectural fire features and bespoke fireplace installations.

With its sleek rectangular design and minimal clearance requirements, the XL900 can be integrated into a wide range of materials such as concrete, stone, marble, timber or stainless steel, allowing architects and designers to create dramatic horizontal fire features in both residential and commercial spaces.

Powered by clean burning bioethanol fuel, the XL900 produces a real flame without smoke, soot or ash and requires no chimney, gas connection or electricity, providing exceptional flexibility for custom fireplace designs.

Key Features

Elongated Linear Flame

The XL900 is designed to produce a long, elegant flame that forms the centrepiece of many contemporary fire features and architectural installations.

Clean Burning Bioethanol

Fuelled by renewable bioethanol, the burner produces no smoke, soot or ash, eliminating the need for flues or chimneys while maintaining the beauty of a real flame.

Flexible Custom Installation

The burner can be installed into bespoke fireplaces, media walls, fire pit tables or architectural features, allowing complete design freedom.

Durable Stainless Steel Construction

Manufactured from Grade 304 stainless steel, ensuring durability, corrosion resistance and long term performance.

Flame Regulation Technology

Purpose designed XL baffles regulate and stabilise the flame while improving fuel efficiency.

Safe Shut Off System

A precision flip lid extinguishing system allows the flame to be safely and easily extinguished when required.

Indoor or Outdoor Use

The XL900 can be used both indoors and outdoors, making it suitable for residential and commercial fire installations.

At a glance

• Fuel capacity: 9 L
• Burn time: 8 to 13 hours
• Heat output: About 4.4 kW (15.83 MJ/h)
• Heats on average: 60 m²
• Minimum room size: 110 m³

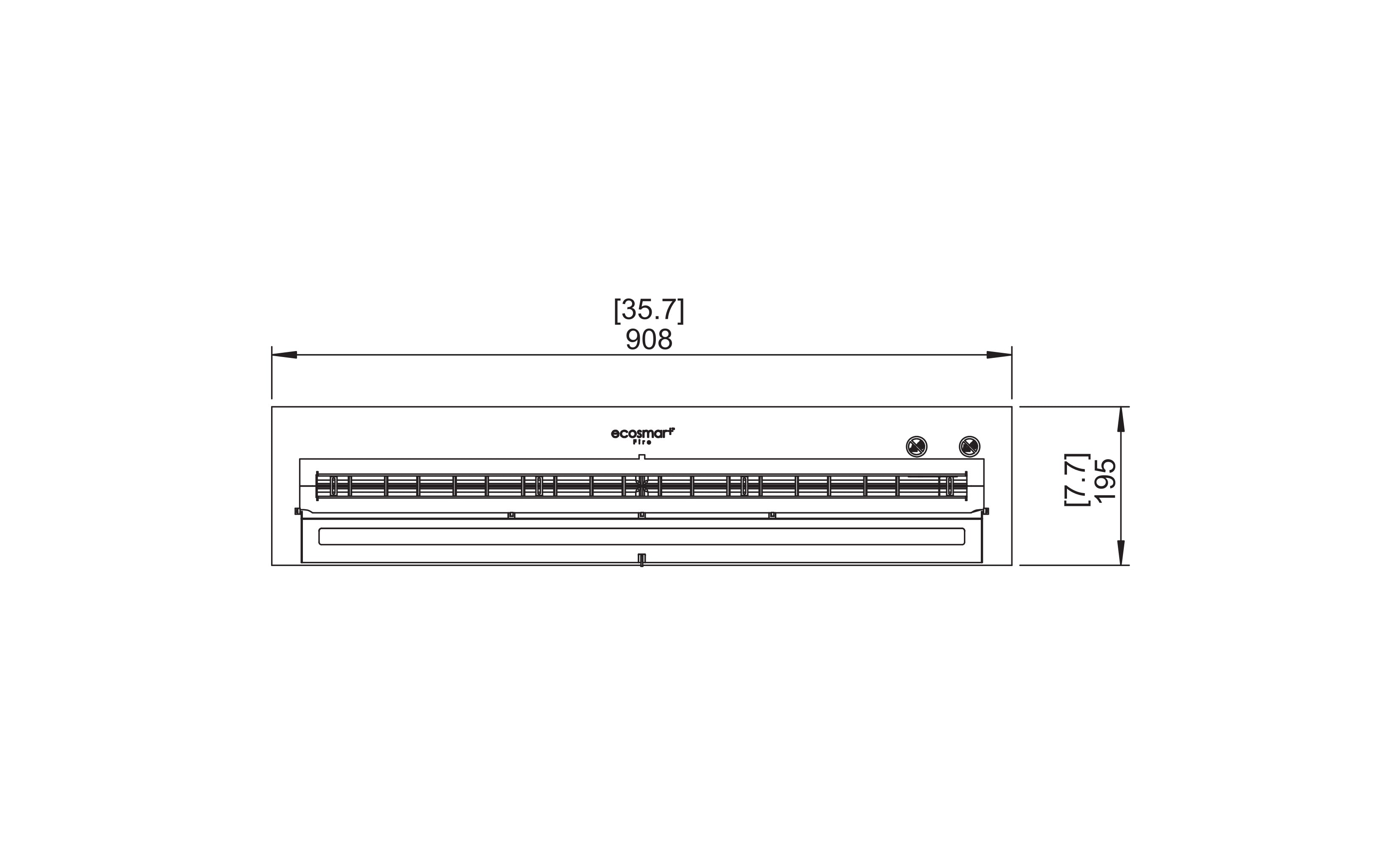

• Dimensions: Model: L 908 mm x W 195 mm x D 112 mm; Top Tray: L 961 mm x W 248 mm x H 124 mm
• Weight: 11.94 to 16.18 kg

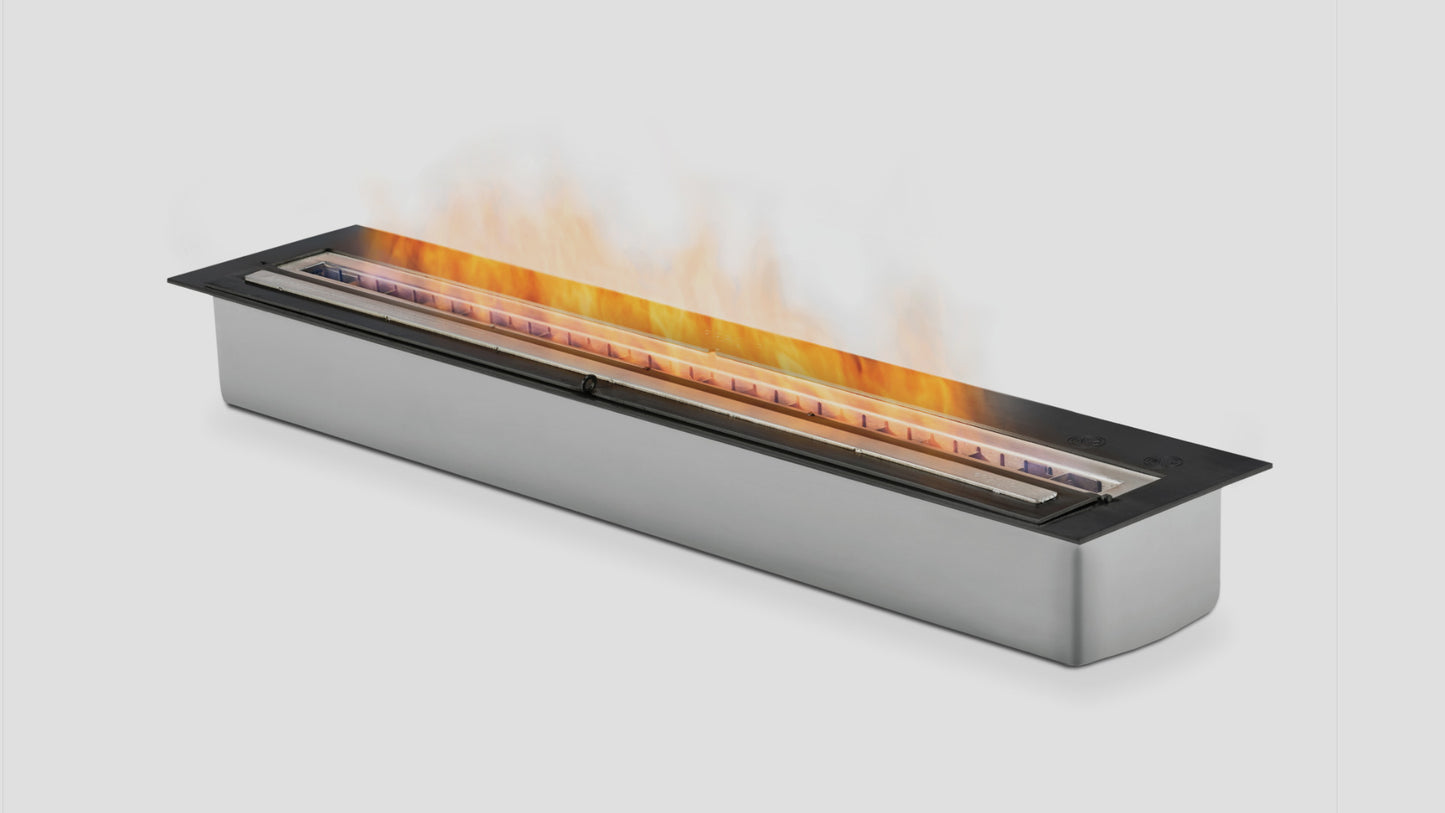

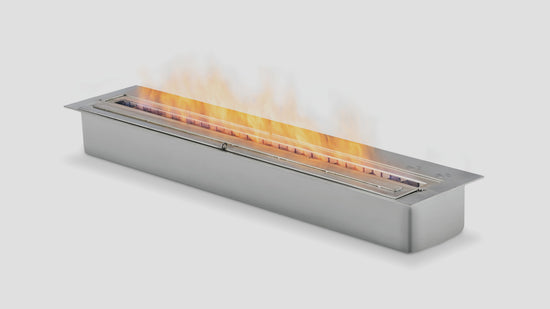

• Materials: Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor or outdoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

Indoors the burner must be installed with an EcoSmart Top Tray. Keep the flame at least 1,500 mm from curtains and other flammable materials, and follow the installation manual.

Included Accessories

The EcoSmart XL900 Ethanol Burner includes the following accessories:

• Lighting rod
• Fire lighter
• 5 L Jerry Can
• Bottle adaptor
• XL baffles

These accessories help ensure safe ignition, efficient fuel handling and stable flame performance.
