XL700

Indoor & Outdoor

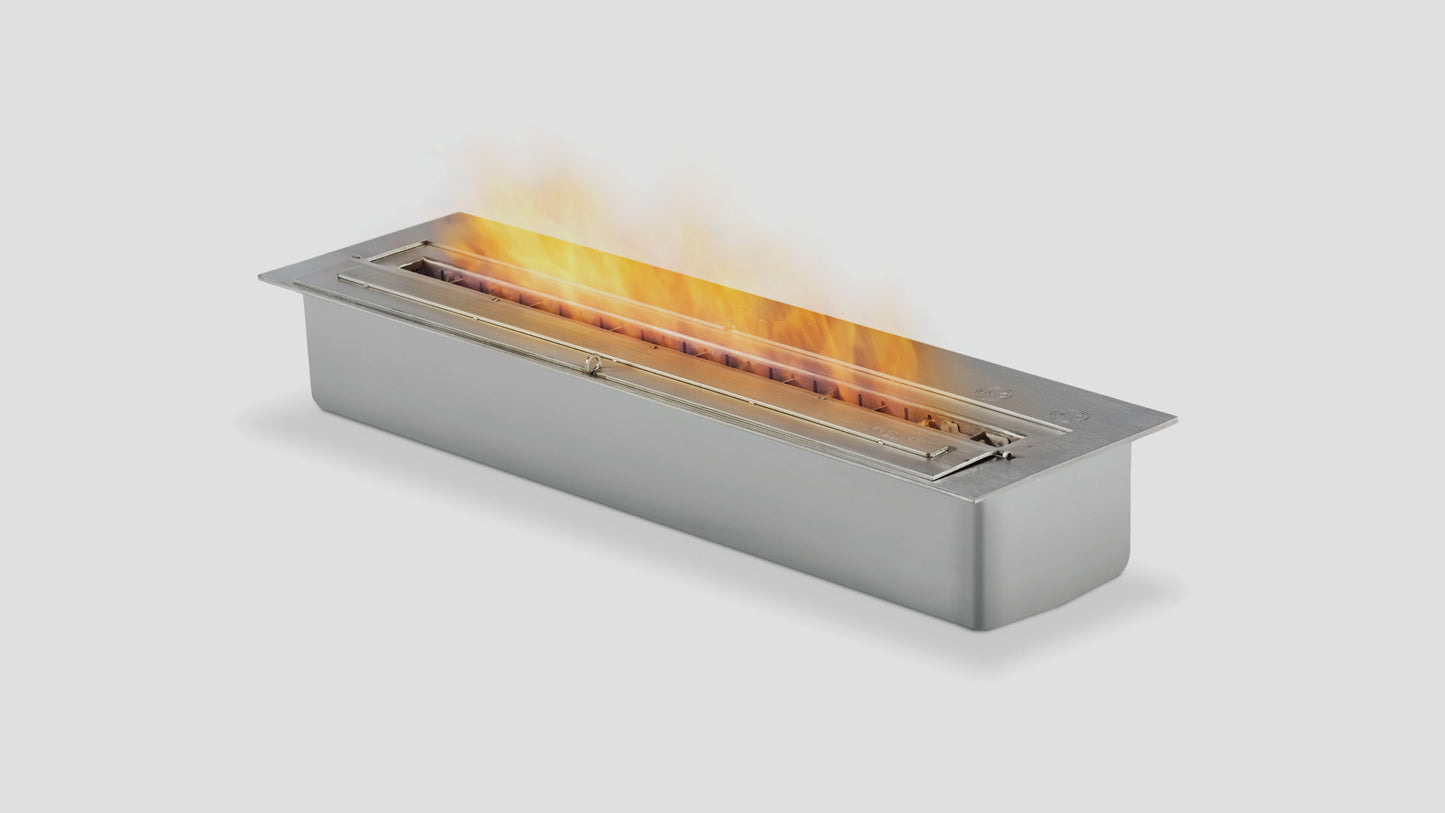

The EcoSmart XL700 is a 7 litre ethanol burner insert for custom fireplaces, fire pit tables and fire features. It gives 9 to 12 hours of flame at about 4 kW, enough for a room of around 50 m². Indoors it must be installed with a Top Tray.

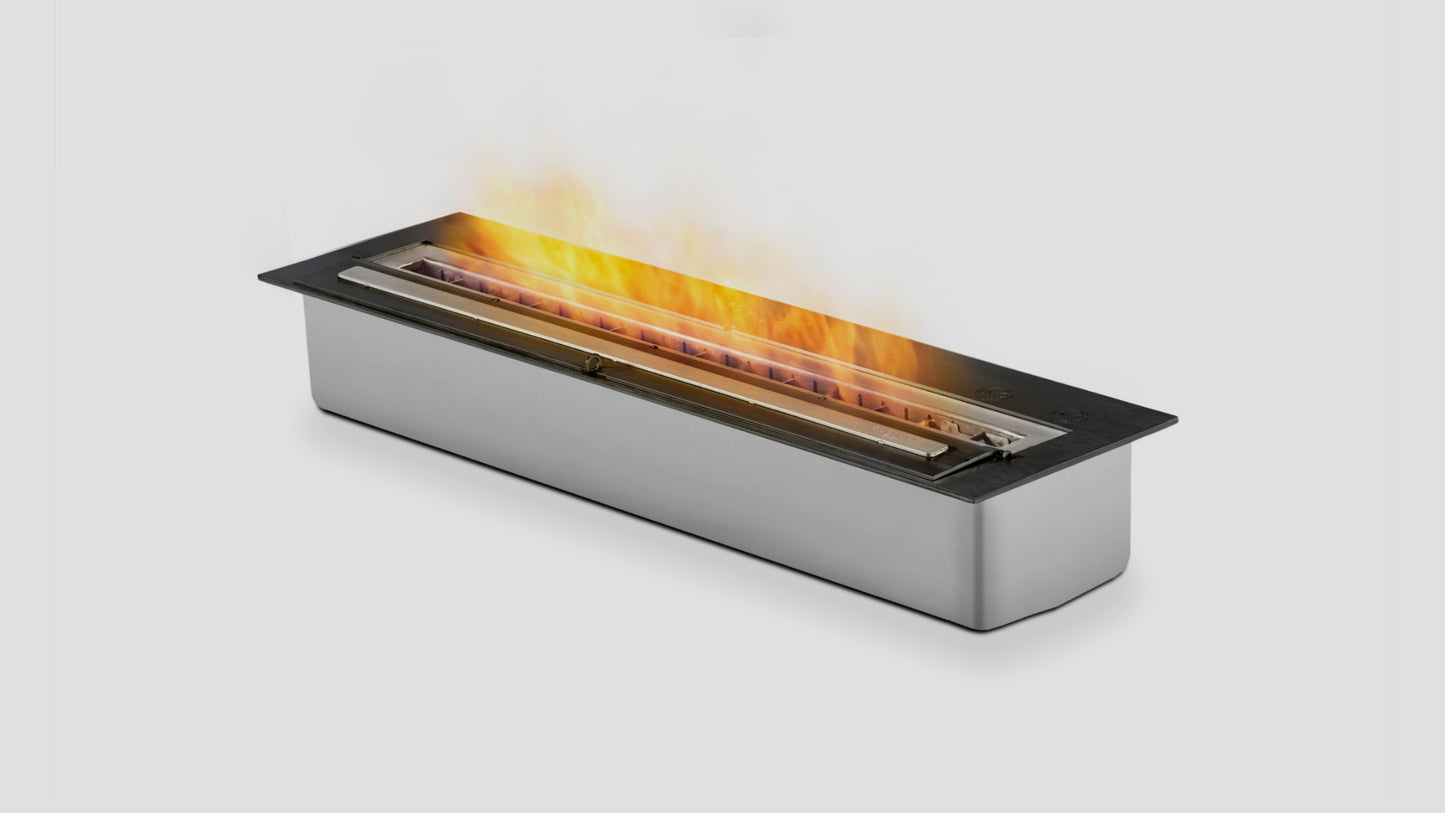

The EcoSmart XL700 Ethanol Burner is a premium linear bioethanol burner designed to create a striking elongated flame in custom fireplaces and architectural fire features. Part of the EcoSmart XL Series, the XL700 delivers a captivating ribbon of flame that integrates seamlessly into modern residential and commercial interiors.

Engineered for design flexibility, the XL700 can be installed into bespoke fireplaces, furniture, media walls and outdoor fire features. Its sleek stainless steel construction and minimal clearance requirements allow designers and homeowners to incorporate fire into a wide range of materials such as stone, concrete, timber or marble.

Key Features

Elegant Linear Flame

The XL700 produces a long, captivating ribbon of flame, making it ideal for modern linear fireplaces and architectural fire features.

Clean Burning Bioethanol

Bioethanol fuel burns without smoke, soot or ash, eliminating the need for flues or chimneys while maintaining the beauty of a real flame.

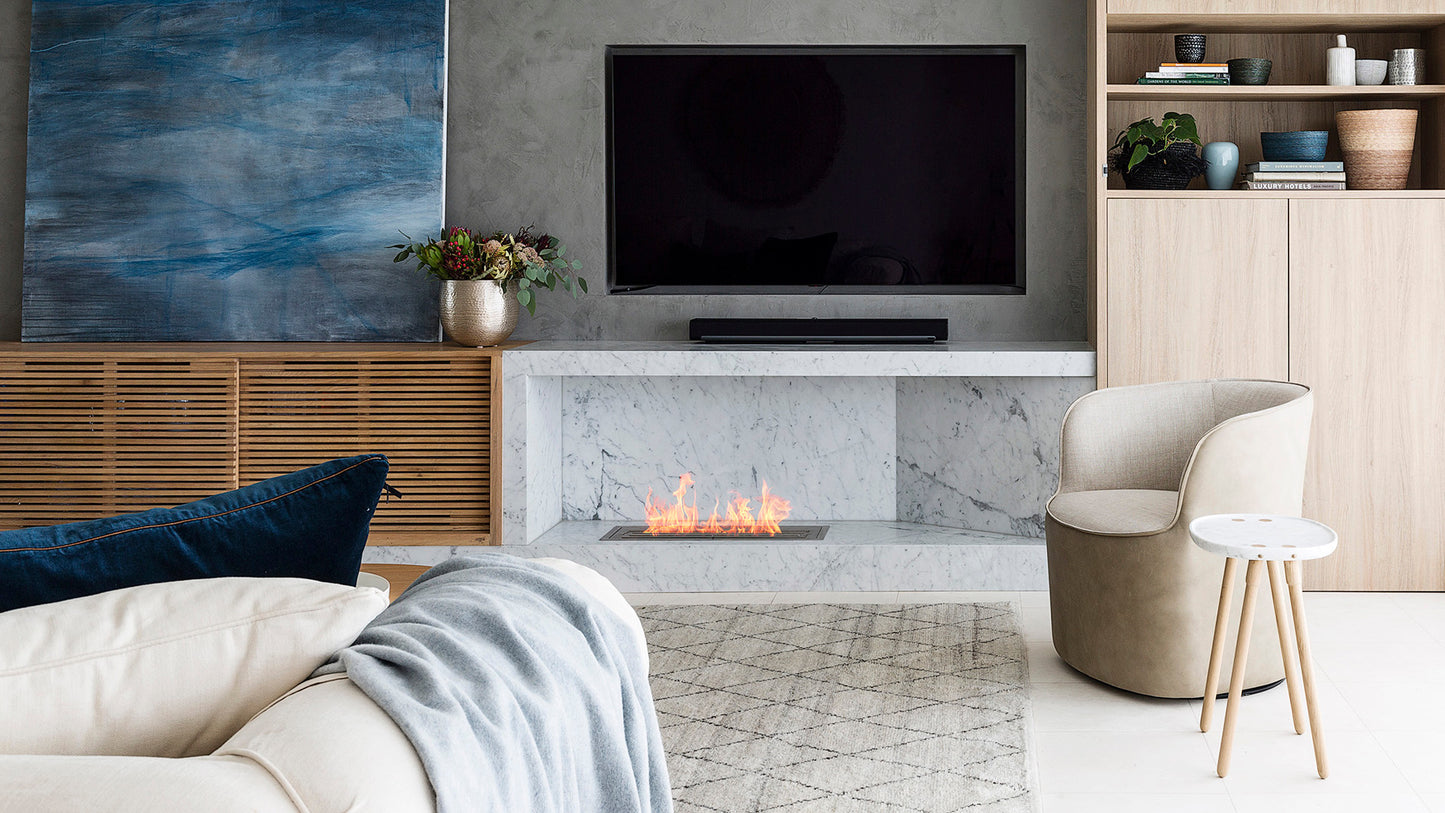

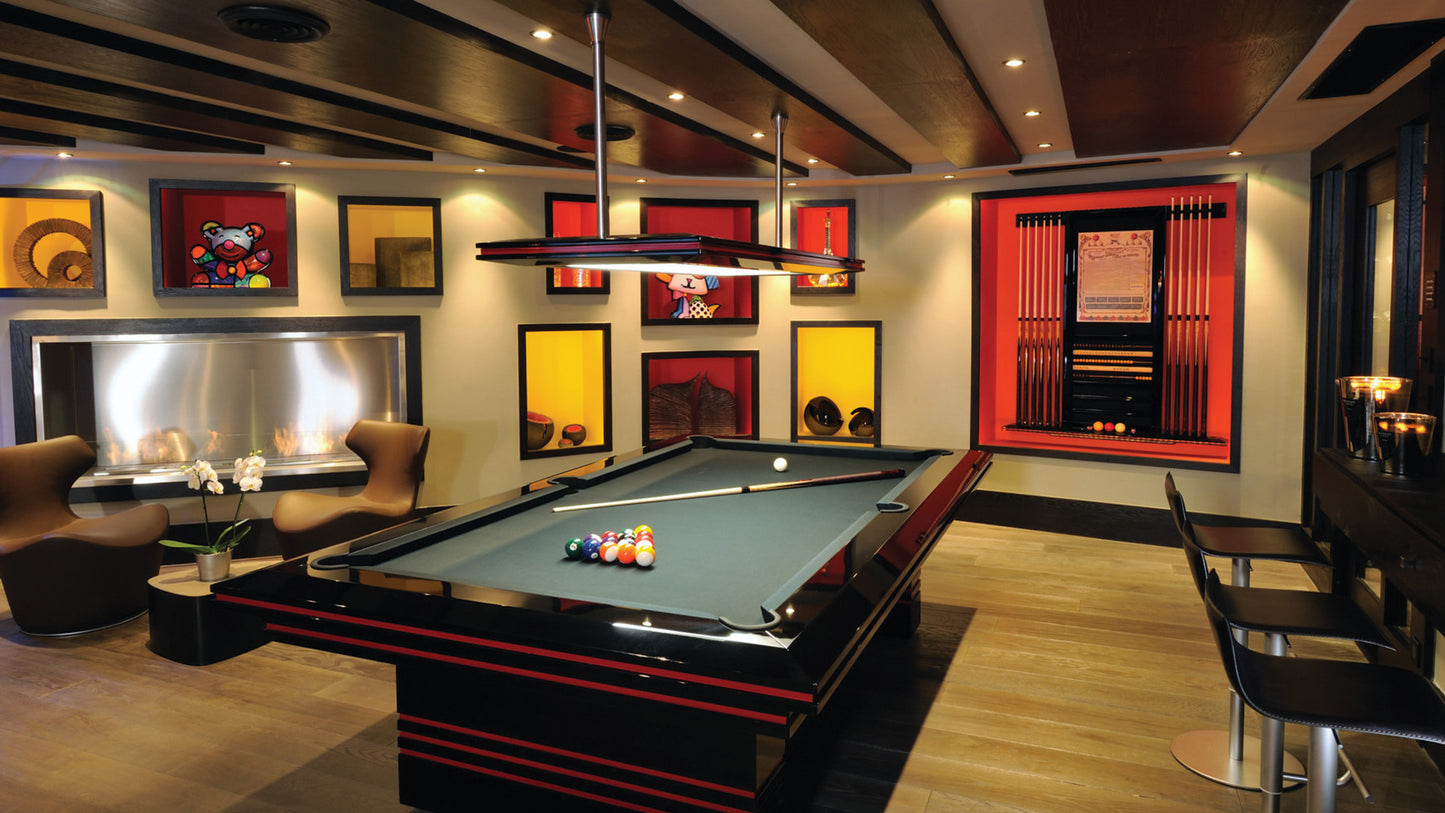

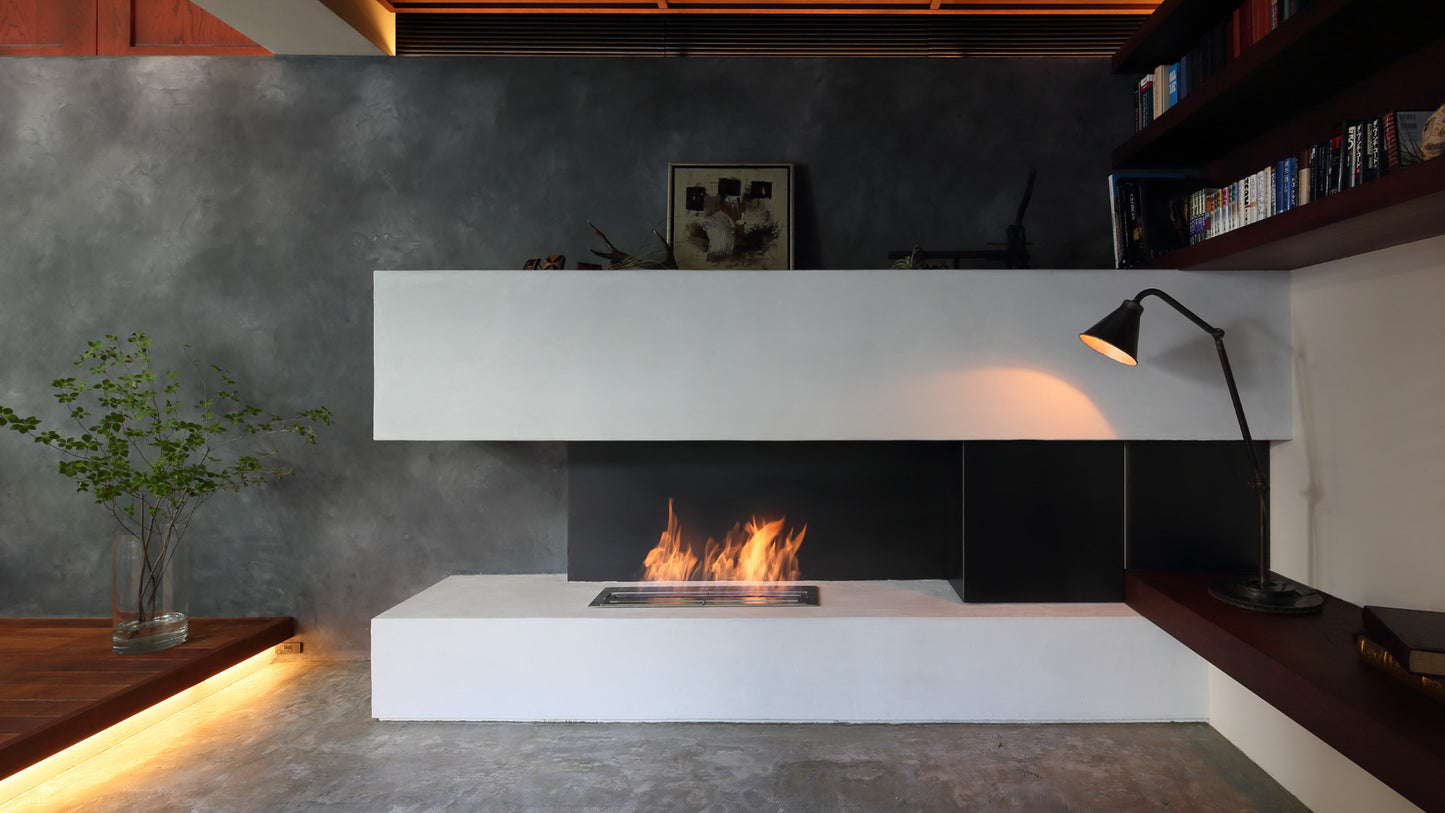

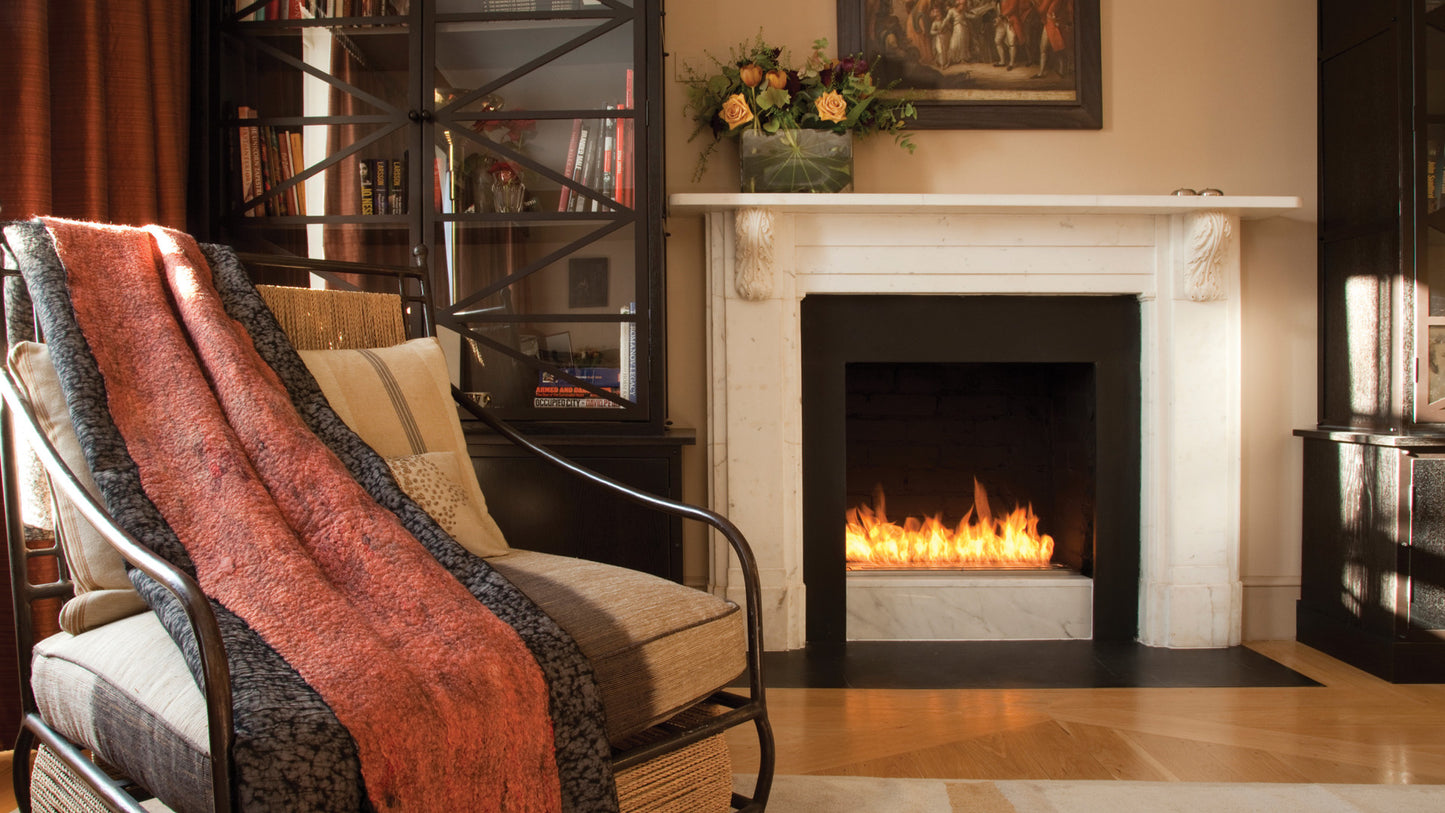

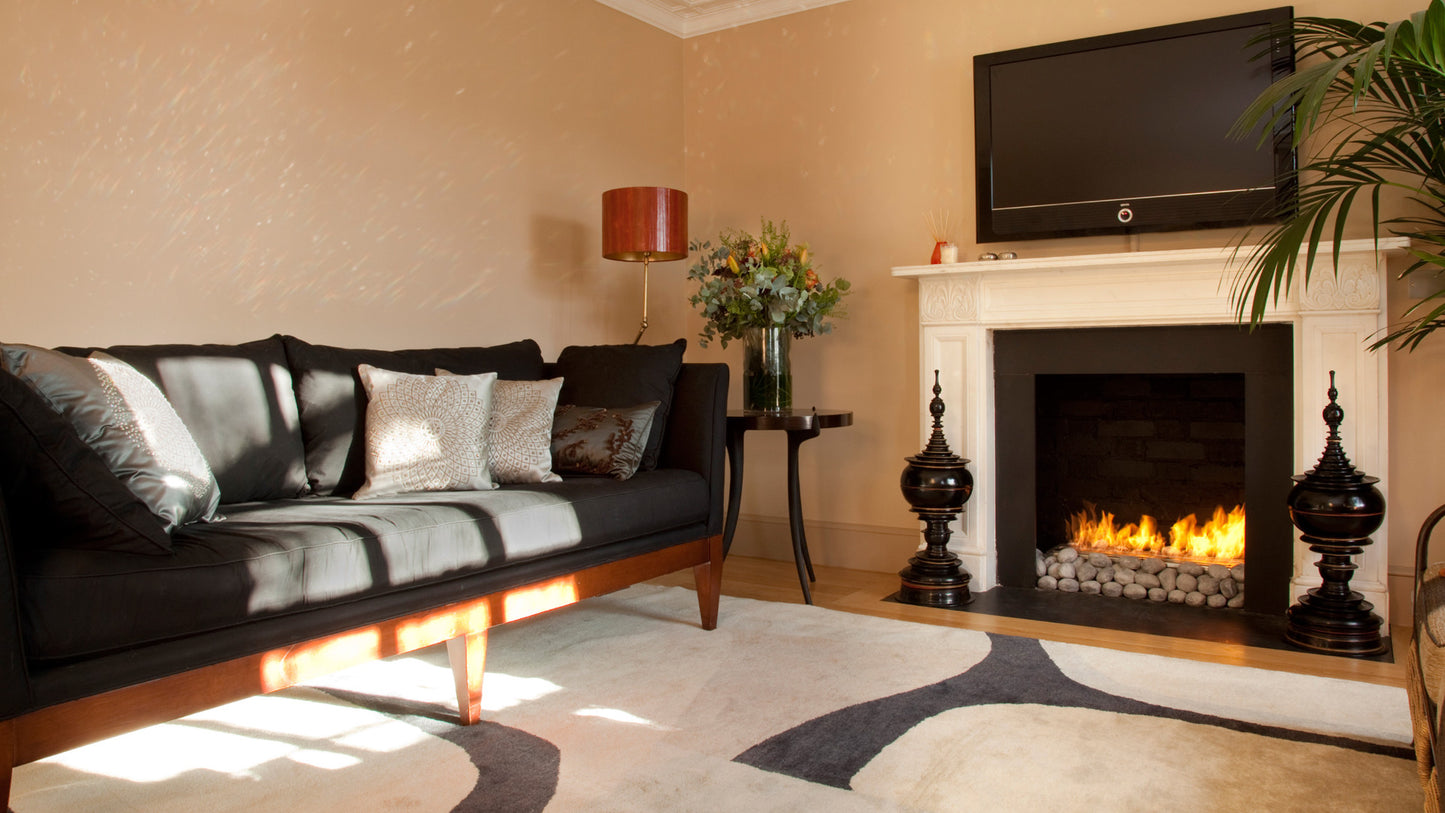

Flexible Custom Installation

The burner can be integrated into custom fireplaces, media walls, furniture installations or outdoor fire features, providing designers with complete creative freedom.

Durable Stainless Steel Construction

Crafted from Grade 304 stainless steel, ensuring durability, corrosion resistance and long term reliability.

Flame Regulation Technology

Purpose designed XL burner baffles help regulate and stabilise the flame while improving fuel efficiency.

Flip Lid Safety Shut Off System

The burner features a flip lid extinguishing system that allows the flame to be safely extinguished when required.

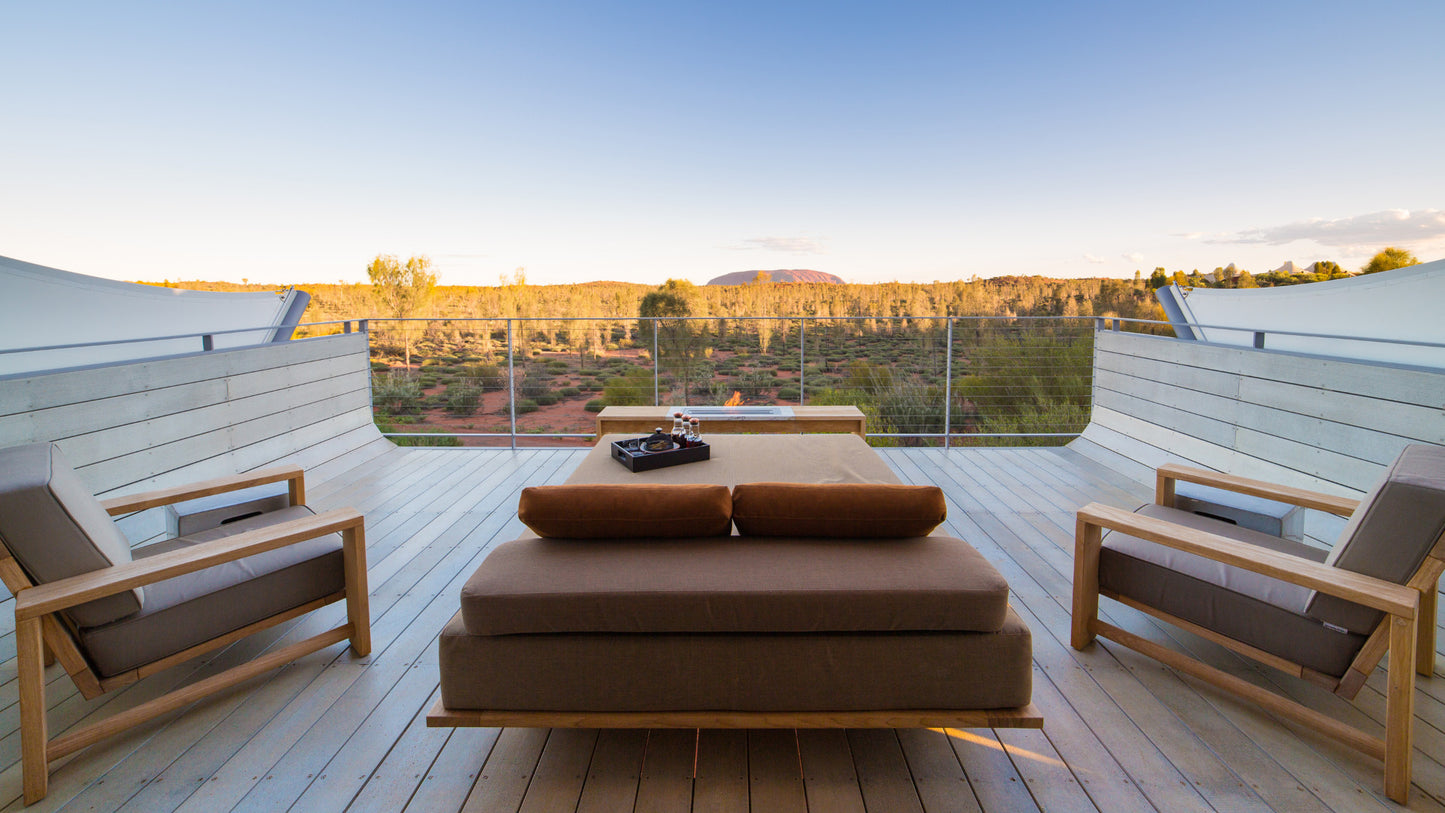

Indoor or Outdoor Installation

Suitable for both indoor and outdoor environments, making it ideal for residential and commercial installations.

At a glance

• Fuel capacity: 7 L
• Burn time: 9 to 12 hours
• Heat output: About 4 kW (14.4 MJ/h)
• Heats on average: 50 m²
• Minimum room size: 90 m³

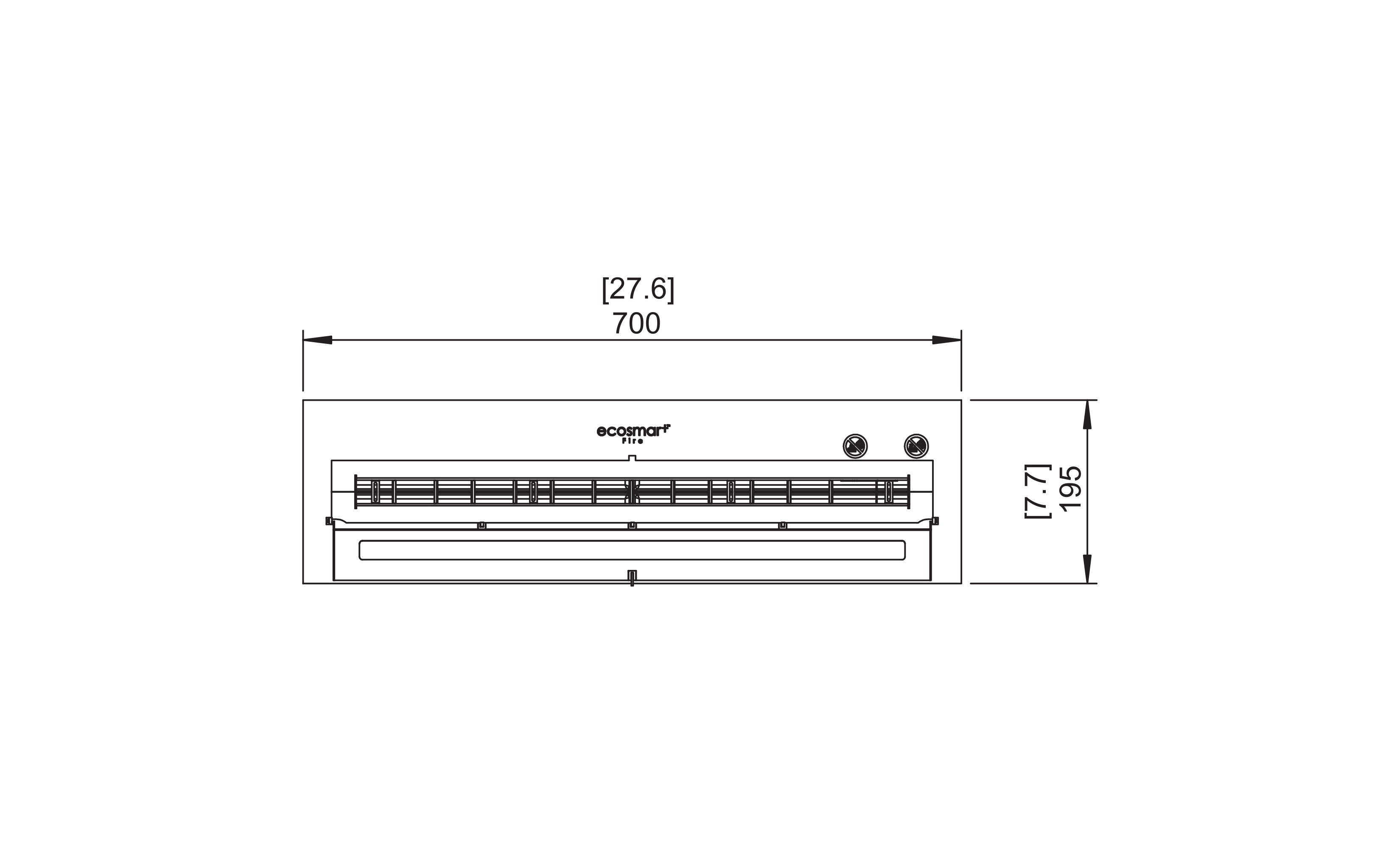

• Dimensions: Model: L 700 mm x W 195 mm x D 112 mm; Top Tray: L 753 mm x W 248 mm x H 124 mm
• Weight: 9.16 to 12.54 kg
• Materials: Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor or outdoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

Indoors the burner must be installed with an EcoSmart Top Tray. Keep the flame at least 1,500 mm from curtains and other flammable materials, and follow the installation manual.

Included Accessories

The EcoSmart XL700 Ethanol Burner includes the following accessories:

• Lighting rod
• Fire lighter
• 5 L Jerry Can
• Bottle adaptor
• XL burner baffles

These accessories help ensure safe ignition, efficient fuel handling and stable flame performance.
