XL500

Indoor & Outdoor

The EcoSmart XL500 is a 5 litre ethanol burner insert for custom fireplaces, fire pit tables and fire features. It gives 10 to 13 hours of flame at about 3.4 kW, enough for a room of around 40 m². Indoors it must be installed with a Top Tray.

The EcoSmart XL500 Ethanol Burner is a compact linear bioethanol burner designed to create a long, elegant flame within custom fireplaces and architectural fire features. The XL500 offers impressive performance in a streamlined design that fits easily into bespoke installations.

Despite its compact size, the XL500 features a 5 L fuel capacity and produces a long lasting ribbon of flame, making it ideal for modern fireplaces, media walls and custom fire pit designs.

Designed for flexibility, the burner can be integrated into a wide variety of materials including stone, concrete, timber and stainless steel, allowing architects and designers to create dramatic horizontal fire features without the need for gas connections, chimneys or electricity.

Key Features

Compact Linear Flame Design

The XL500 produces a long, vibrant flame in a compact linear burner, making it ideal for smaller custom fireplace installations or furniture integrated fire features.

Clean Burning Bioethanol

Fuelled by renewable bioethanol, the burner produces no smoke, soot or ash, eliminating the need for flues or chimneys while maintaining the beauty of a real flame.

Flexible Custom Installation

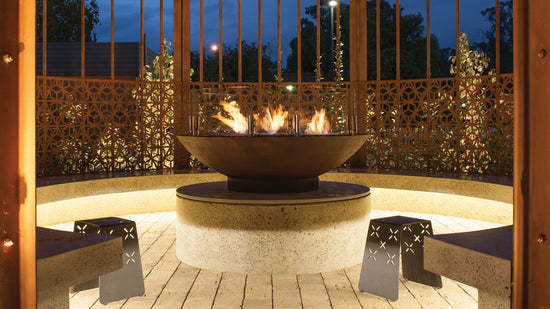

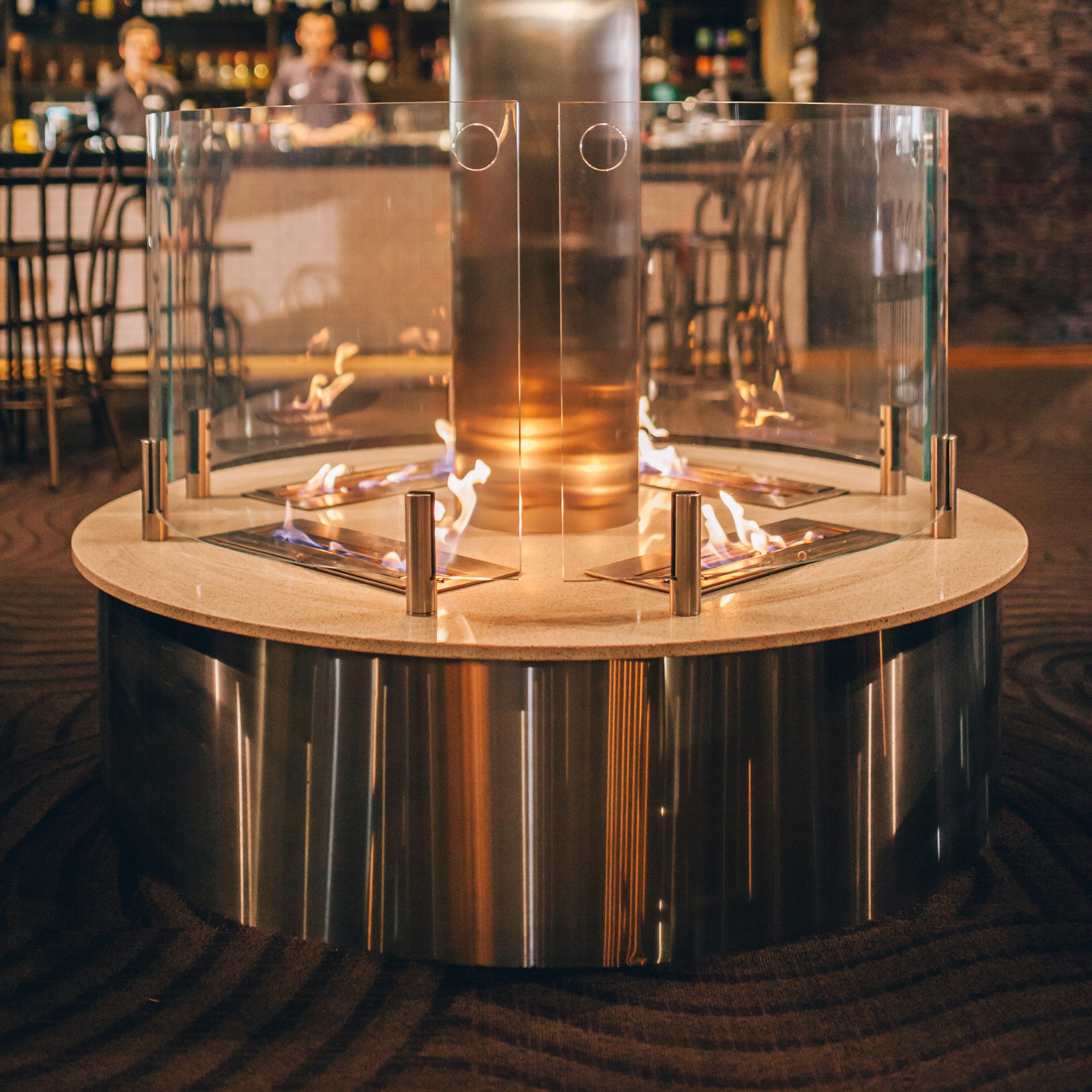

The burner can be installed into custom fireplaces, media walls, fire pit tables or architectural installations, offering designers complete creative freedom.

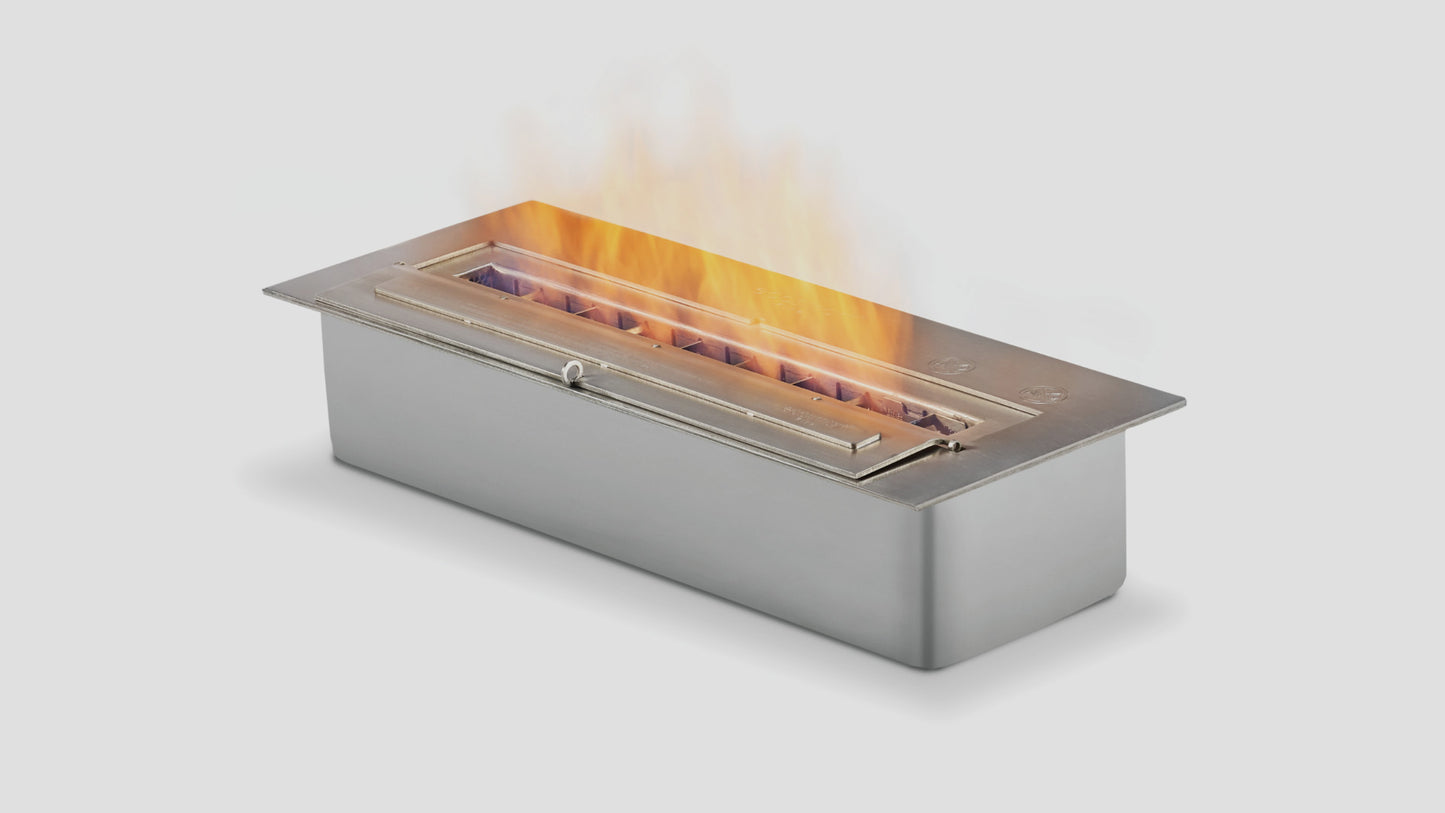

Durable Stainless Steel Construction

Manufactured from Grade 304 stainless steel, ensuring durability, corrosion resistance and long term reliability.

Flame Regulation Technology

Purpose designed XL burner baffles help regulate and stabilise the flame while improving fuel efficiency.

Safe Shut Off System

A precision flip lid extinguishing system allows the flame to be safely and easily extinguished when required.

Indoor or Outdoor Use

The XL500 burner can be used both indoors and outdoors, making it suitable for residential and commercial installations.

At a glance

• Fuel capacity: 5 L
• Burn time: 10 to 13 hours
• Heat output: About 3.4 kW (12.06 MJ/h)
• Heats on average: 40 m²
• Minimum room size: 80 m³

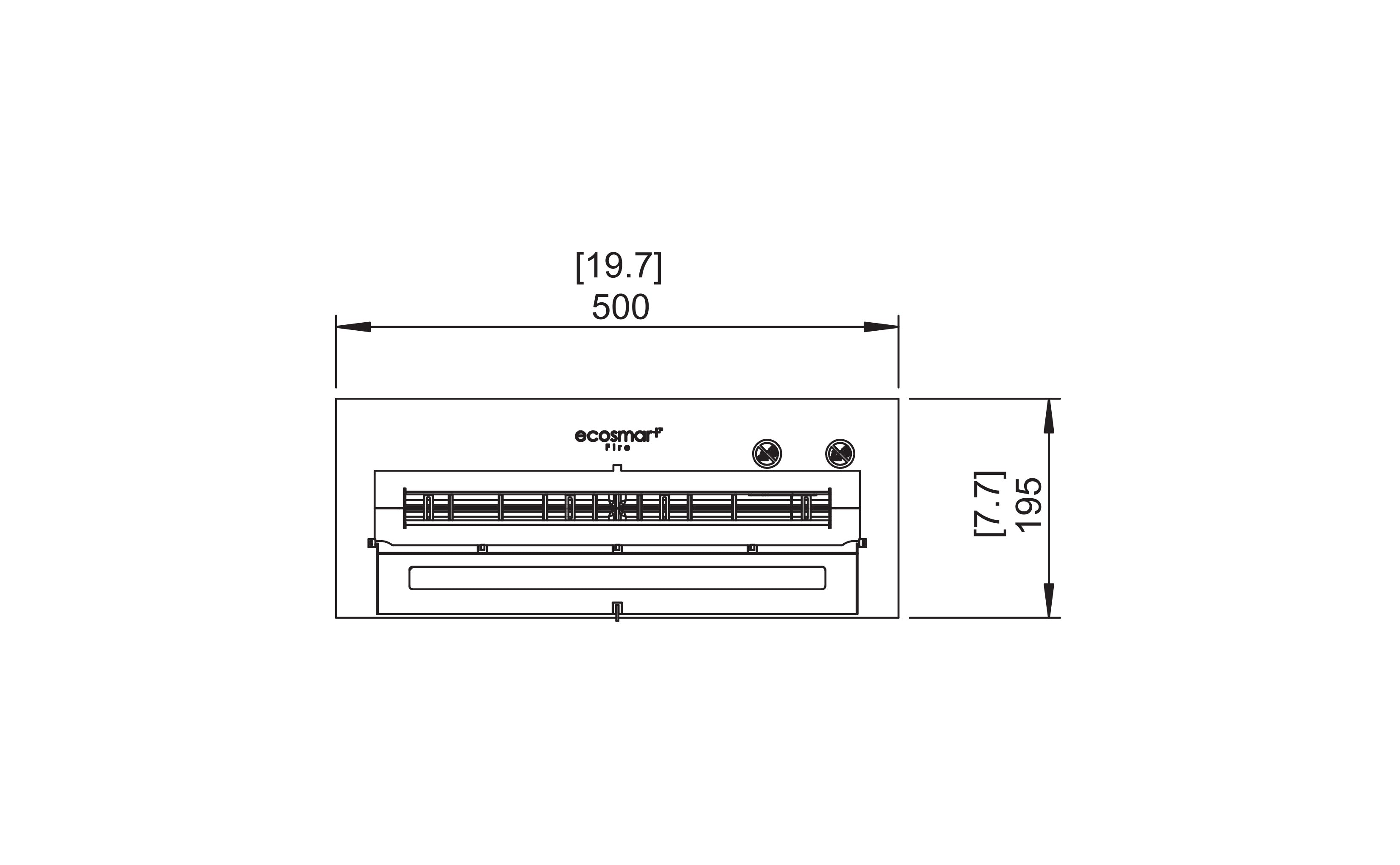

• Dimensions: Model: L 500 mm x W 195 mm x D 112 mm; Top Tray: L 553 mm x W 248 mm x H 124 mm
• Weight: 6.5 to 9.12 kg

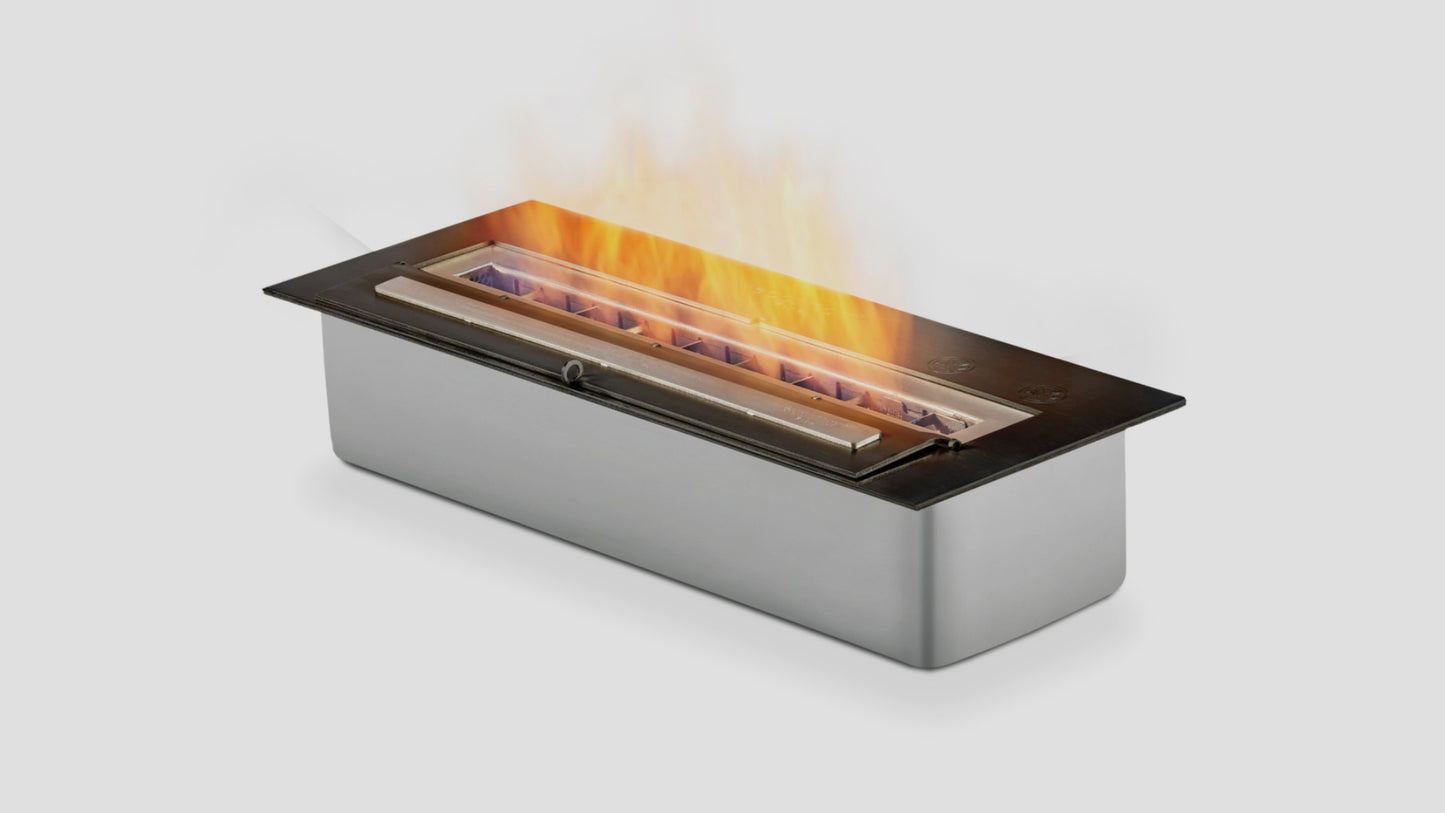

• Materials: Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor or outdoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

Indoors the burner must be installed with an EcoSmart Top Tray. Keep the flame at least 1,500 mm from curtains and other flammable materials, and follow the installation manual.

Included Accessories

The EcoSmart XL500 Ethanol Burner includes the following accessories:

• Lighting rod
• Fire lighter
• 5 L Jerry Can
• Bottle adaptor
• XL burner baffles

Optional accessories include a top tray for heat protection and spill management.

These components help ensure safe ignition, efficient fuel handling and optimal burner performance.
