XL1200

Indoor & Outdoor

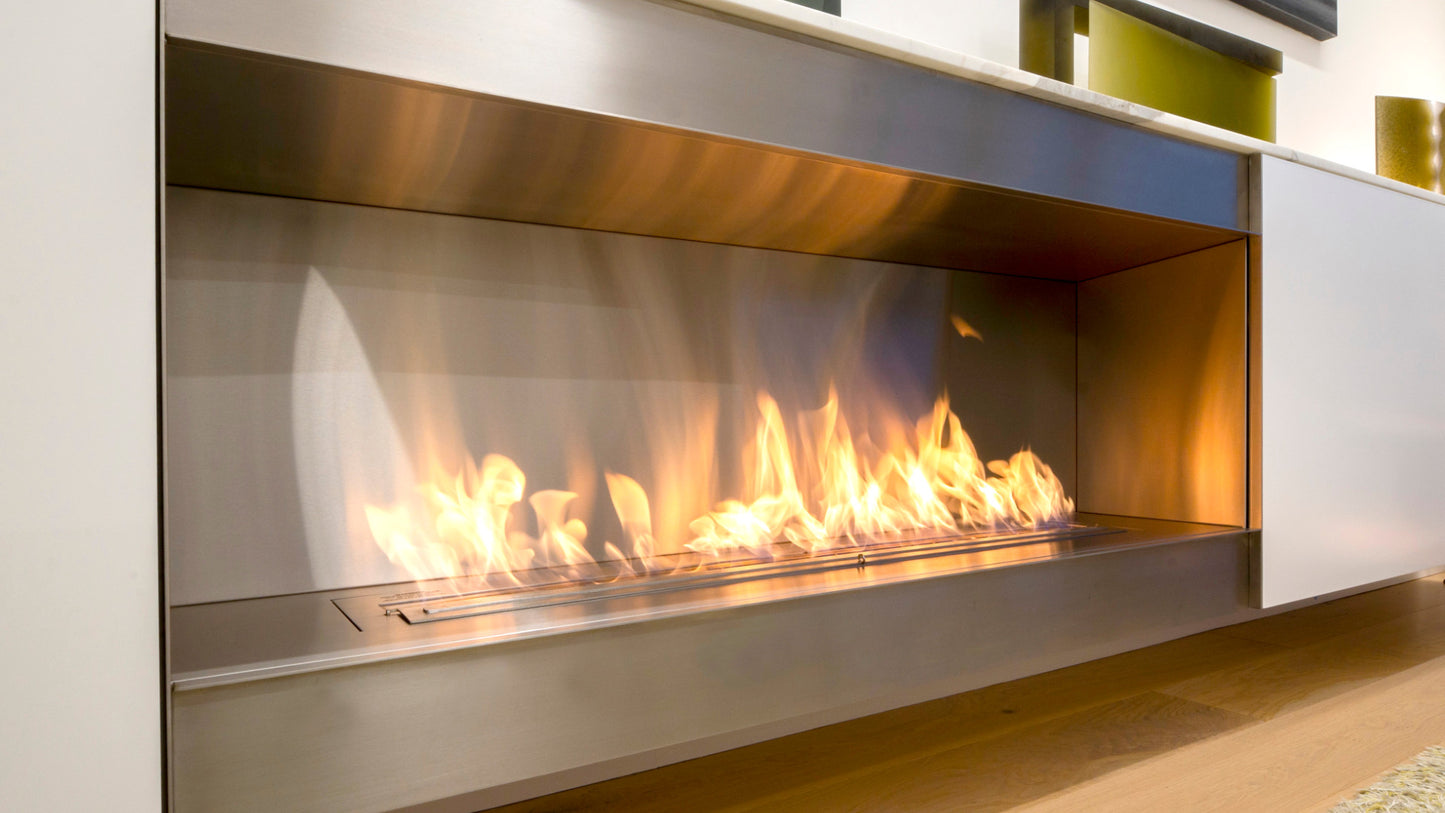

The EcoSmart XL1200 is a 10 litre ethanol burner insert for custom fireplaces, fire pit tables and fire features. It gives 9 to 14 hours of flame at about 4.5 kW, enough for a room of around 65 m². Indoors it must be installed with a Top Tray.

The EcoSmart XL1200 Ethanol Burner is the largest linear bioethanol burner in the EcoSmart XL Series, designed to create dramatic elongated flames in large architectural fireplaces and bespoke fire features. With its extended length and powerful performance, the XL1200 delivers a stunning ribbon of flame that enhances modern residential and commercial environments.

Engineered for custom installations, the XL1200 integrates seamlessly into a wide range of materials such as stone, marble, concrete, timber or stainless steel. Its sleek rectangular design and minimal clearance requirements allow architects and designers to create striking horizontal fireplaces, media walls and custom fire features.

Key Features

Extra Long Linear Flame

The XL1200 produces one of the longest flames in the EcoSmart burner range, creating a striking centrepiece for large fireplaces and architectural fire features.

Clean Burning Bioethanol

Fuelled by renewable bioethanol, the burner produces no smoke, soot or ash, eliminating the need for chimneys or flues while maintaining the beauty of a real flame.

Flexible Custom Installation

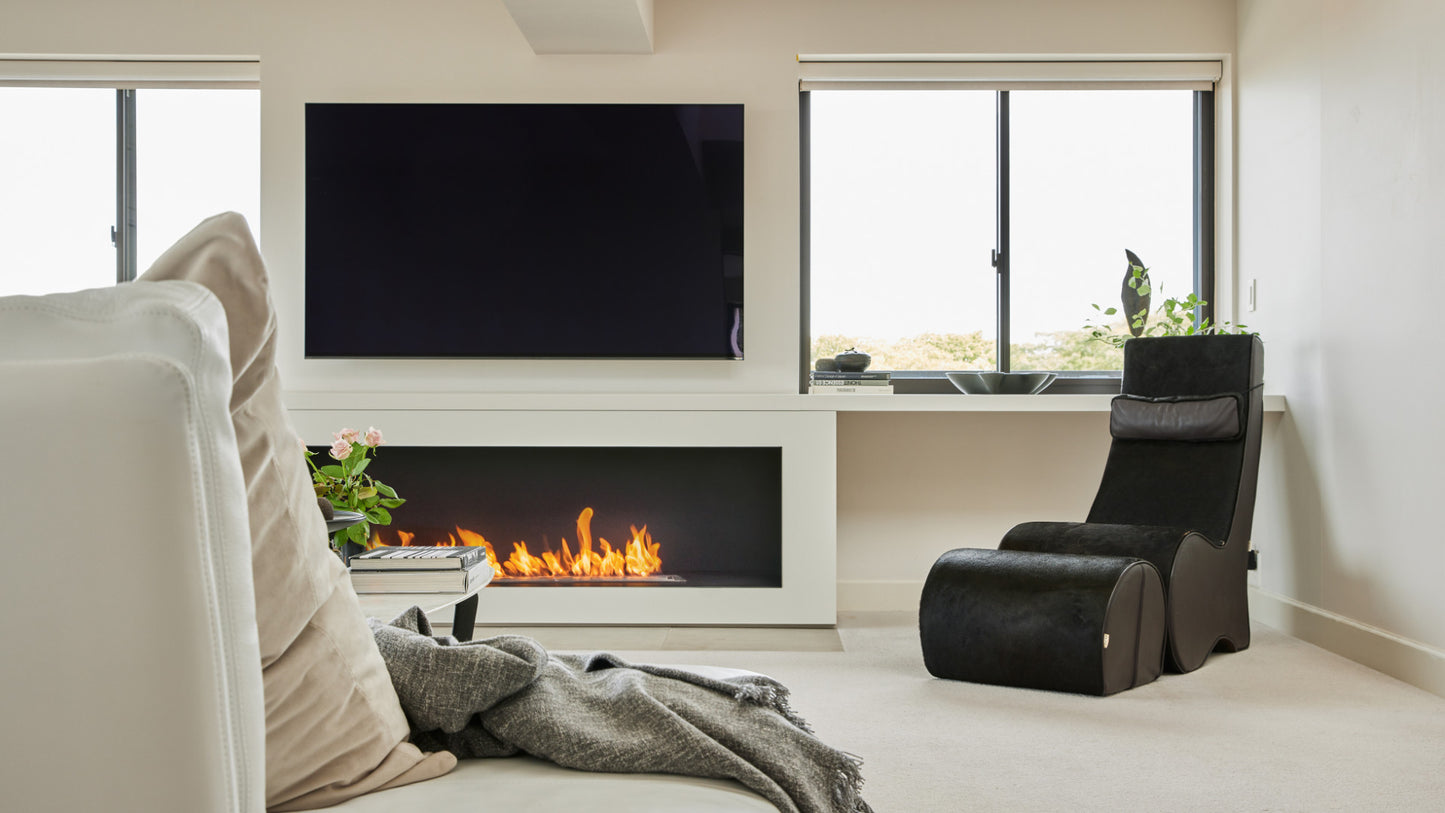

The burner can be integrated into custom fireplaces, media walls, fire pit tables and architectural installations, providing designers with complete creative freedom.

Durable Stainless Steel Construction

Crafted from Grade 304 stainless steel, ensuring durability, corrosion resistance and long term performance.

Flame Regulation Technology

Purpose designed XL burner baffles help stabilise the flame while improving fuel efficiency and overall performance.

Flip Lid Safety Shut Off System

A precision flip lid mechanism allows the flame to be safely extinguished when required.

Indoor or Outdoor Installation

Suitable for both indoor and outdoor applications, allowing installation in residential living spaces, hospitality venues and commercial environments.

At a glance

• Fuel capacity: 10 L
• Burn time: 9 to 14 hours
• Heat output: About 4.5 kW (16.13 MJ/h)
• Heats on average: 65 m²
• Minimum room size: 115 m³

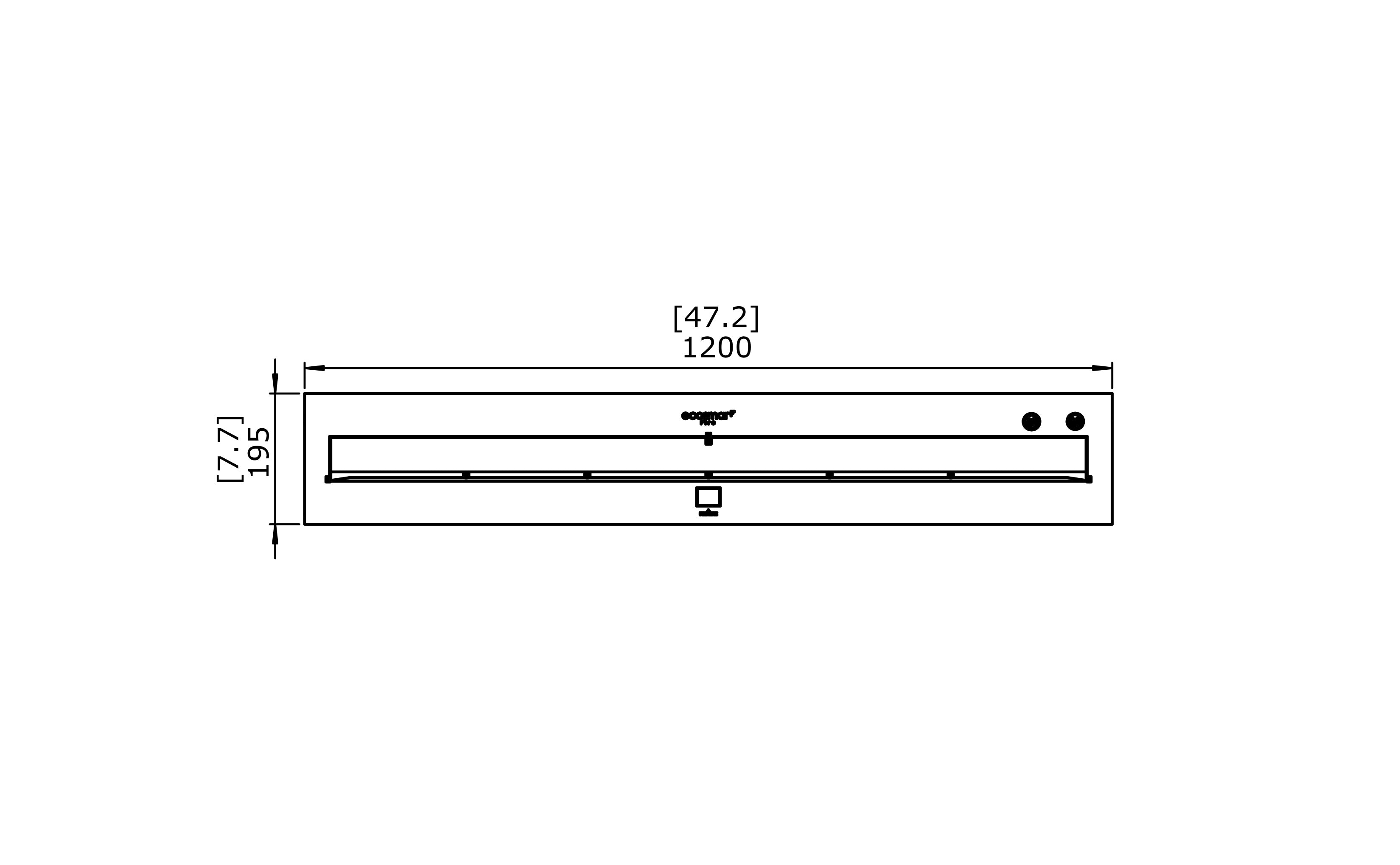

• Dimensions: Model: L 1,200 mm x W 195 mm x D 112 mm; Top Tray: L 1,253 mm x W 248 mm x H 124 mm
• Weight: 15.66 to 20.84 kg

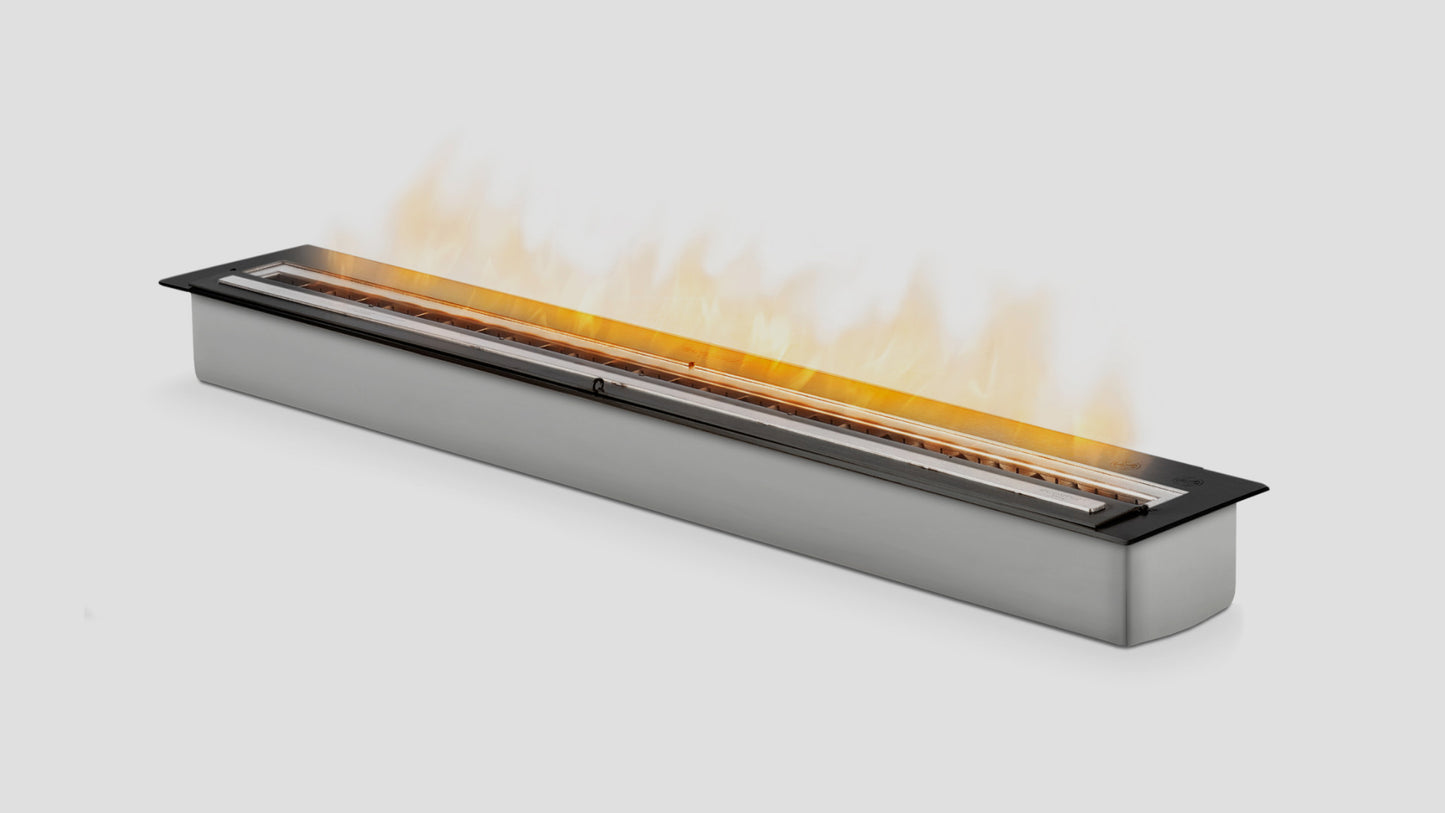

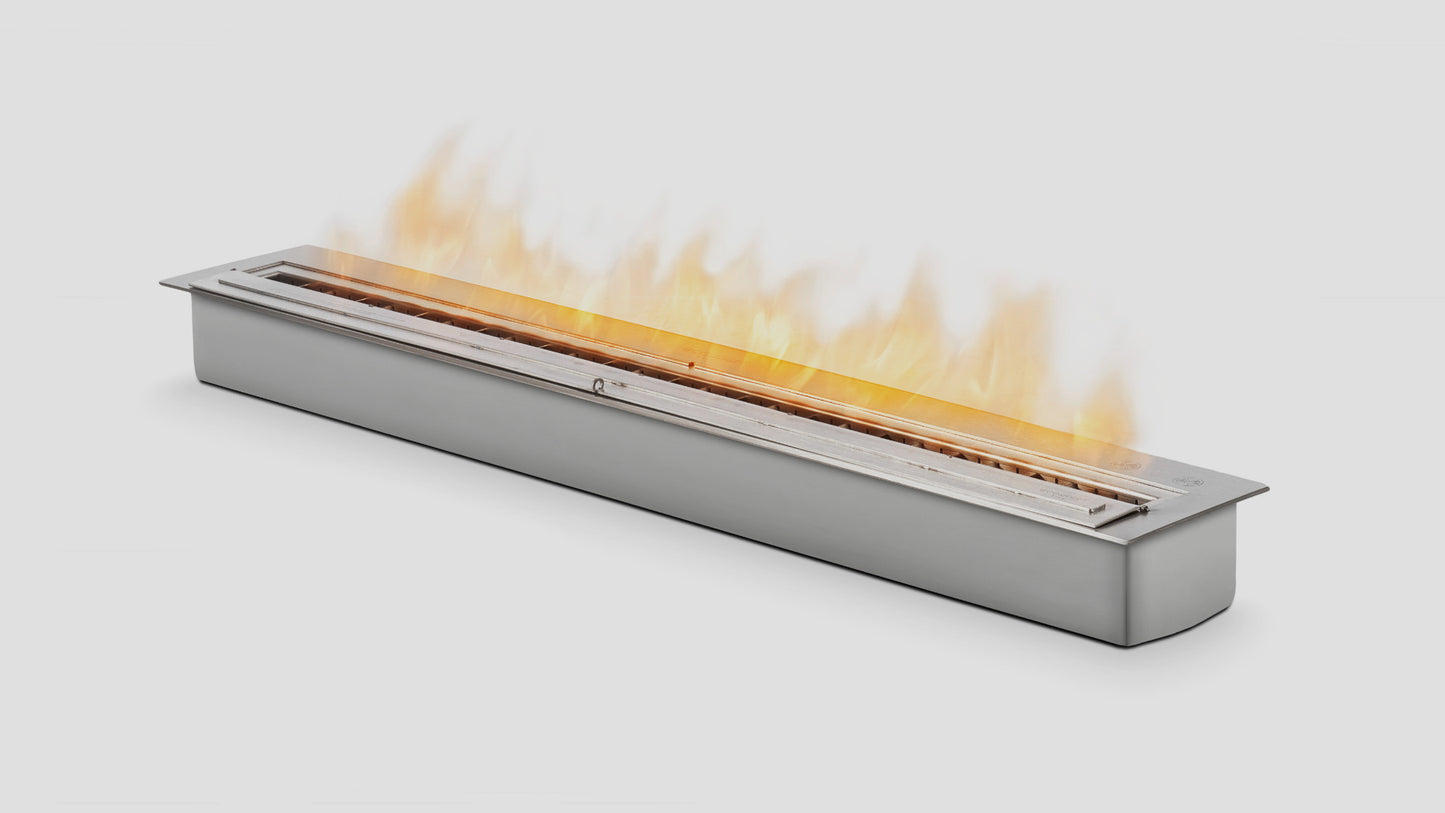

• Materials: Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor or outdoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

Indoors the burner must be installed with an EcoSmart Top Tray. Keep the flame at least 1,500 mm from curtains and other flammable materials, and follow the installation manual.

Included Accessories

The EcoSmart XL1200 Ethanol Burner includes the following accessories:

• Lighting rod
• Fire lighter
• 5 L Jerry Can
• Bottle adaptor
• XL burner baffles
• Optional top tray for installation

These accessories help ensure safe ignition, efficient fuel handling and stable flame performance.
