Square 22

Square 22

Square 22

Indoor & Outdoor

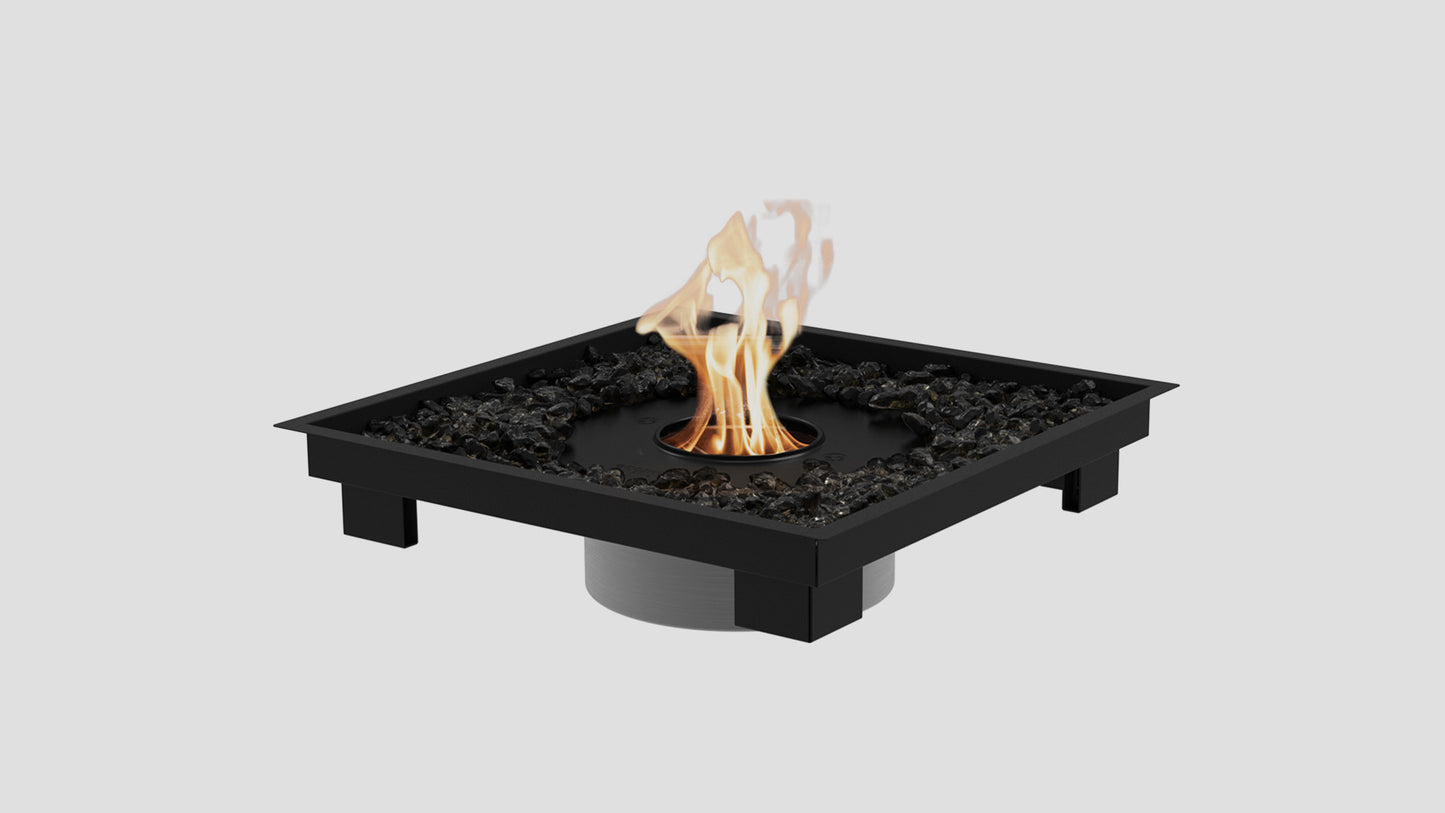

The EcoSmart Square 22 fire pit kit is a drop-in bioethanol burner kit for building your own fire pit table, bench or fire feature. It uses the AB8 burner: 8 litres of fuel, 7 to 9 hours of flame and about 6 kW.

The EcoSmart Square 22 Fire Pit Kit is a compact built in fire pit system designed to create a stylish and inviting flame feature within custom furniture or architectural installations. Featuring a round stainless steel AB8 bioethanol burner set within a square tray, this fire pit kit can be easily integrated into square or rectangular designs such as coffee tables, outdoor benches or bespoke fire pits.

Its compact footprint makes the Square 22 perfect for smaller living spaces, patios or outdoor entertaining areas while still delivering the warmth and ambience of a real flame. Designed for versatility, the kit can be installed into a wide range of non combustible surfaces including stone, concrete, brick and tile, allowing designers and homeowners to create unique fire features.

Key Features

AB8 Bioethanol Burner

The Square 22 includes the powerful EcoSmart AB8 burner, delivering a vibrant flame with impressive heat output and efficient fuel consumption.

Compact Square Fire Pit Design

A round burner set within a square tray allows the fire pit kit to integrate seamlessly into square or rectangular furniture layouts such as fire pit tables or custom fire features.

Clean Burning Bioethanol

Bioethanol fuel burns without smoke, soot or ash, providing the ambience of a traditional fire without the mess or maintenance of wood fires.

Flexible Custom Installation

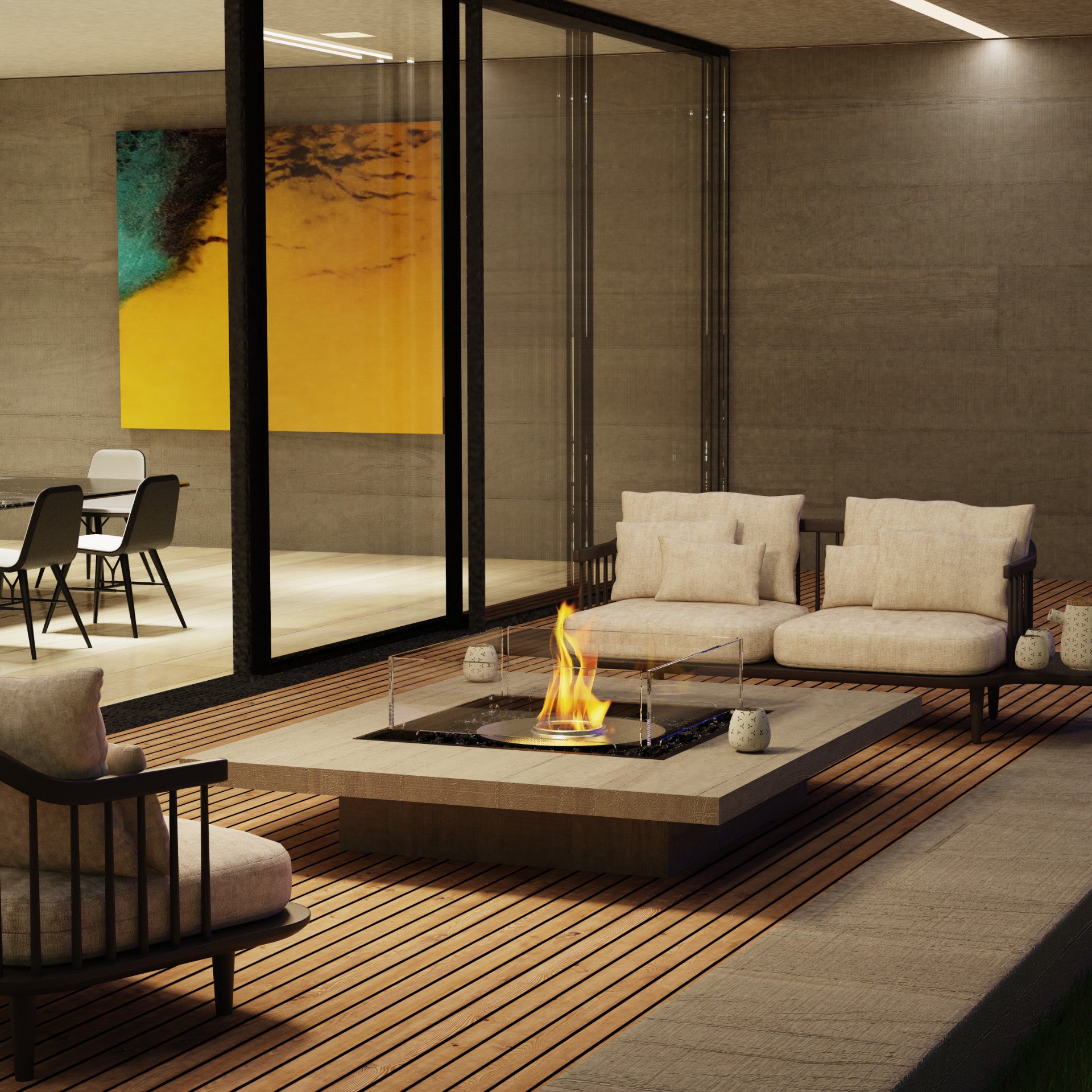

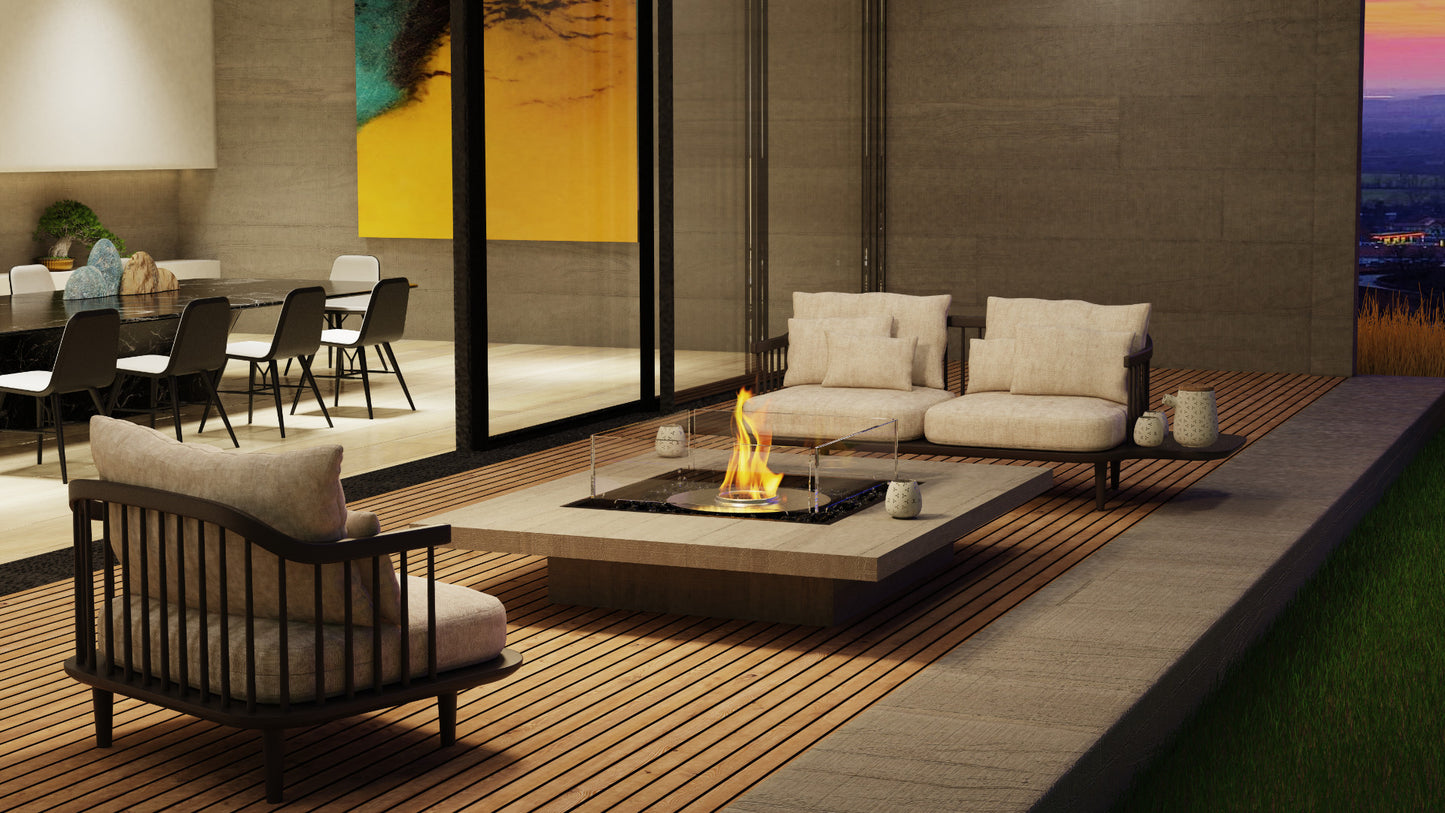

The self contained fire pit kit can be installed into custom fire pit tables, architectural fireplaces or outdoor entertainment features, giving complete design freedom.

Indoor or Outdoor Use

Suitable for both indoor and outdoor installations when installed according to EcoSmart guidelines.

Premium Materials

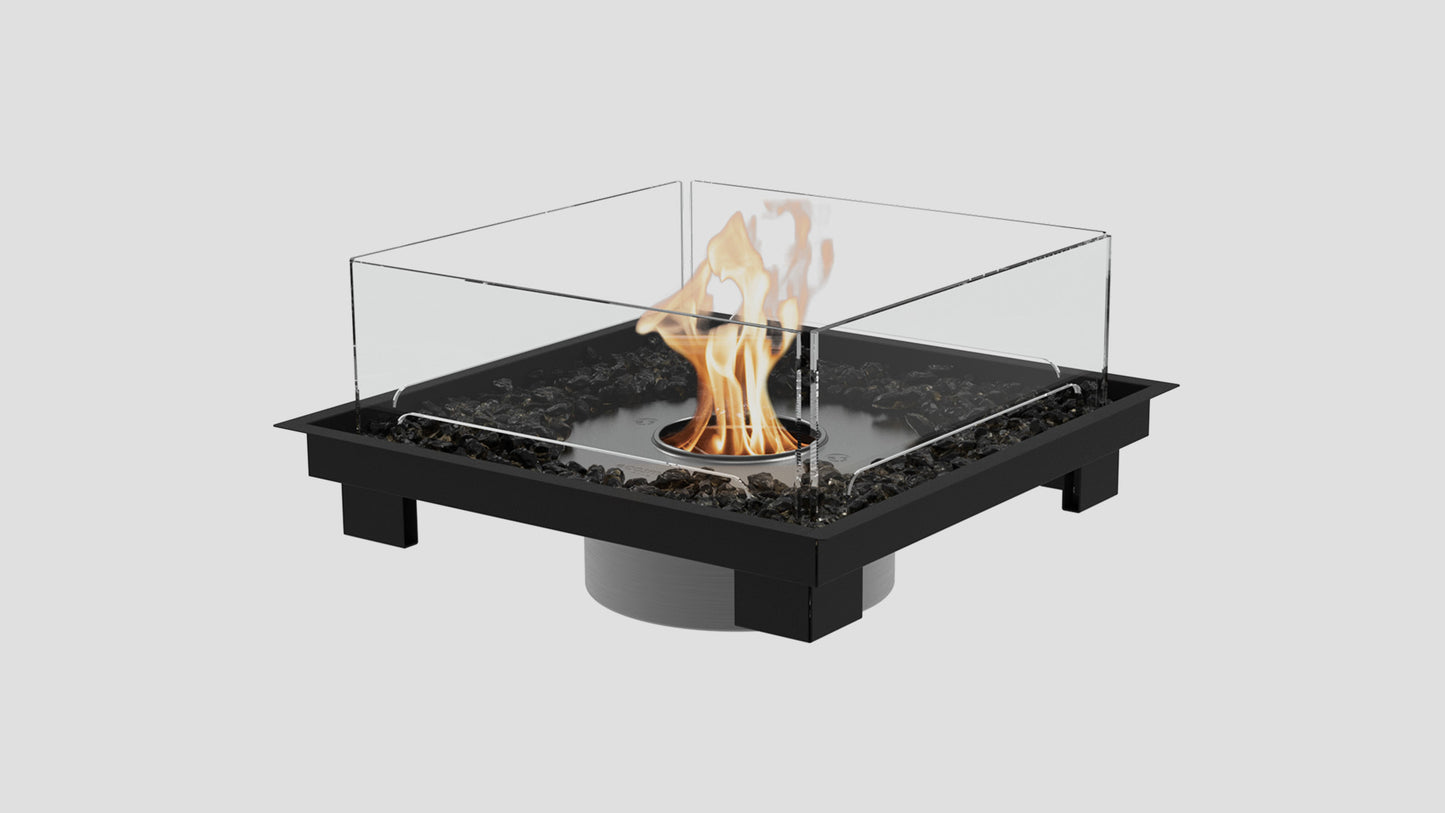

Constructed from high quality stainless steel with toughened glass accessories, ensuring durability and long term performance.

Simple Drop In Installation

The fire pit kit is designed for easy installation, simply drop the tray into the prepared opening to create a stunning fire feature.

At a glance

  • Burner: AB8
  • Fuel capacity: 8 L
  • Burn time: 7 to 9 hours
  • Heat output: About 6 kW (21.56 MJ/h)
  • Heats on average: 60 m²
  • Minimum room size: 116 m³
  • Dimensions: 623 x 623 x 198 mm
  • Weight: 16.94 kg
  • Materials: Stainless Steel (Black, High-Temp Coated) Tray; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
  • Use: Indoor or outdoor
  • Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

Outdoors it is ready to use. For indoor use EcoSmart requires its Indoor Safety Tray and the included AB8 Efficiency Ring. The tray is not part of the standard listing, so ask us before you buy for indoor use. With the efficiency ring fitted, as required indoors, EcoSmart's rating is 3.8 kW and 9 to 11 hours.

Included Accessories

The Square 22 Fire Pit Kit includes the following accessories:

  • AB8 bioethanol burner
  • Black glass charcoal decorative media
  • Lighting rod
  • Fire lighter
  • 5 L Jerry Can
  • Bottle adaptor
  • AB8 efficiency ring

These accessories help ensure safe ignition, efficient fuel use and optimal flame performance.

Goes with

Delivered across New Zealand. Call 0800 468 836 to check the Square 22 is lit in our Takapuna showroom, open seven days.

Square 22

W62.3

D62.3

H34.9

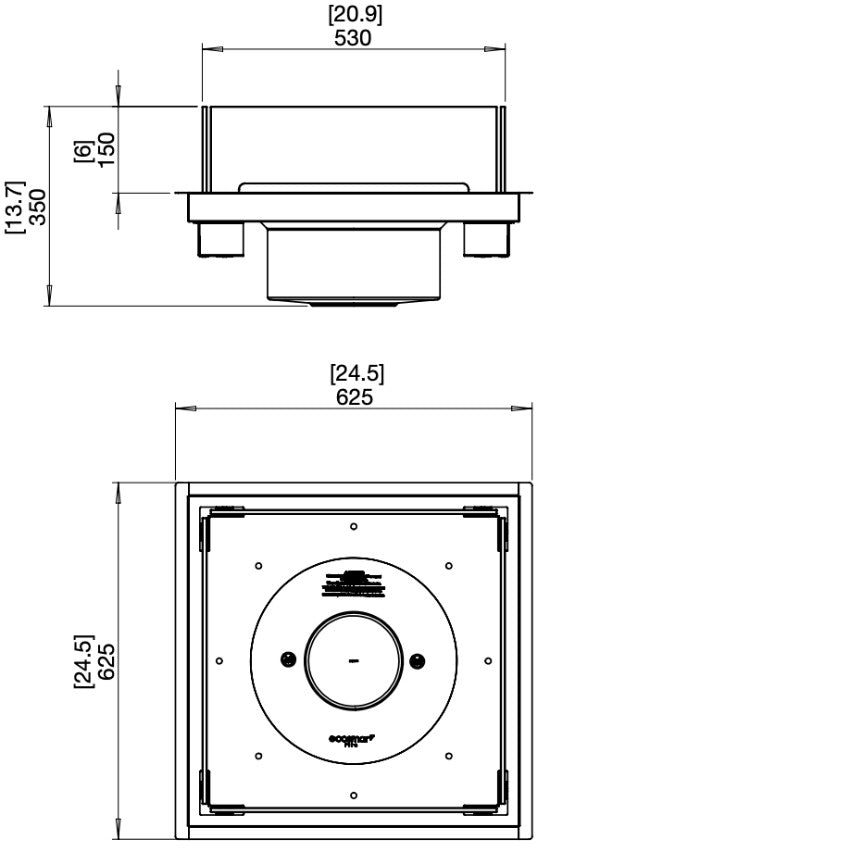

Product Dimensions
