Round 20 Fire Pit Kit

Indoor & Outdoor

The EcoSmart Round 20 fire pit kit is a drop-in bioethanol burner kit for building your own fire pit table, bench or fire feature. It uses the AB8 burner: 8 litres of fuel, 7 to 9 hours of flame and about 6 kW.

The EcoSmart Round 20 Fire Pit Kit is a stylish and compact fire pit insert designed for seamless integration into custom outdoor or indoor fire features. Its circular design and single central flame create an inviting focal point, making it ideal for smaller entertaining areas, patios and bespoke fire pit tables.

Powered by the efficient EcoSmart AB8 bioethanol burner, this fire pit kit delivers beautiful flames with clean combustion and no smoke or ash. The result is a modern fire feature that offers warmth and ambience without the need for chimneys, gas connections or complex installation.

Key Features

Clean Burning Bioethanol Flame

• Runs on renewable bioethanol fuel for a smokeless, soot free flame.
• No chimney, flue or utility connection required.
• Perfect for modern architectural fire features.

Designed for Custom Fire Pits

• Round burner tray allows easy installation into stone, concrete, brick or tiled surfaces.
• Ideal for built in fire pit tables, patio features or bespoke outdoor lounges.

Compact & Elegant Design

• Curved circular layout creates a single striking flame that enhances intimate spaces.
• Works beautifully as a centrepiece for smaller gatherings or designer landscapes.

Durable Construction

• Built with stainless steel components and toughened materials for durability and long term performance.
• Designed for reliable use in outdoor environments.

Indoor & Outdoor Compatibility

• Suitable for both indoor and outdoor installations.
• Flexible installation options allow placement in custom furniture or architectural builds.

At a glance

• Burner: AB8
• Fuel capacity: 8 L
• Burn time: 7 to 9 hours
• Heat output: About 6 kW (21.56 MJ/h)
• Heats on average: 60 m²
• Minimum room size: 116 m³

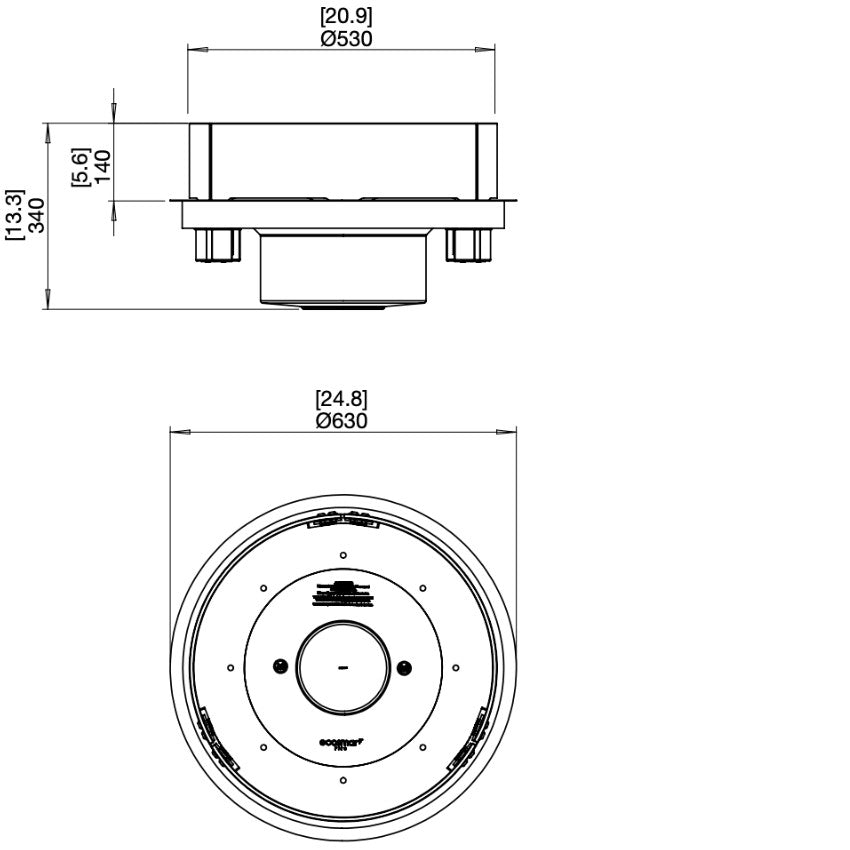

• Dimensions: 630 x 630 x 198 mm
• Weight: 16.04 kg
• Materials: Stainless Steel (Black, High-Temp Coated) Tray; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor or outdoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

Outdoors it is ready to use. For indoor use EcoSmart requires its Indoor Safety Tray and the included AB8 Efficiency Ring. The tray is not part of the standard listing, so ask us before you buy for indoor use. With the efficiency ring fitted, as required indoors, EcoSmart's rating is 3.8 kW and 9 to 11 hours.

Included Accessories

The Round 20 Fire Pit Kit includes:

• AB8 ethanol burner
• Lighting rod and fire lighter
• Bottle adaptor for refuelling
• 5L Jerry Can for fuel storage
• Black glass charcoal
• AB8 Efficiency ring

Optional accessories such as covers and additional decorative media are available.

Goes with

• Glass Cover Plate, size R20
• Glass Fire Screen (ask us for the size)
• AB8 Lid
• Silicone Burner Cover (AB8)
• Lighting Rod
• Bioethanol fuel
• All fire pit kits
• Guide: Can you put a fire pit on a timber deck?

Delivered across New Zealand. Call 0800 468 836 to check the Round 20 Fire Pit Kit is lit in our Takapuna showroom, open seven days.
