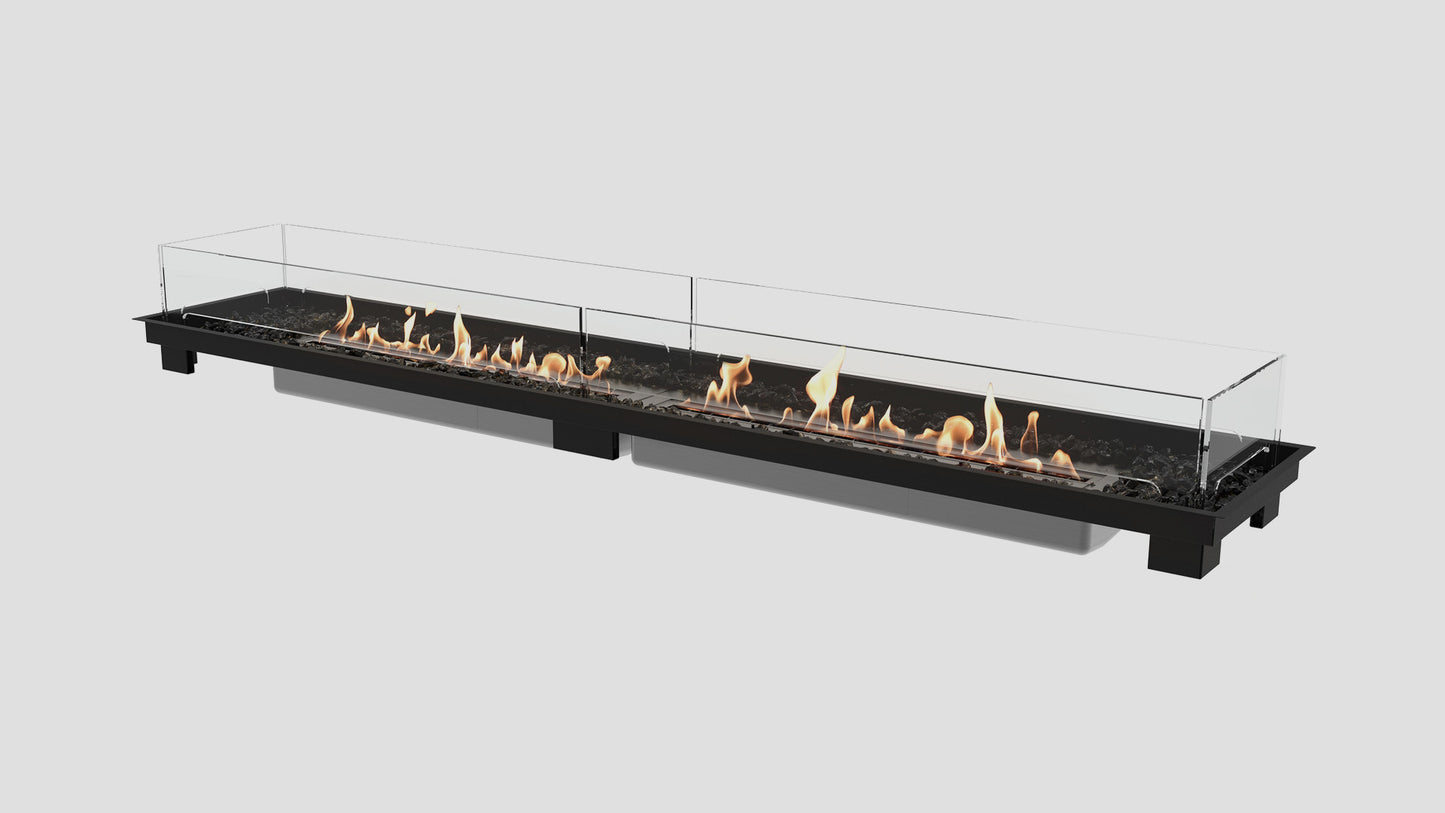

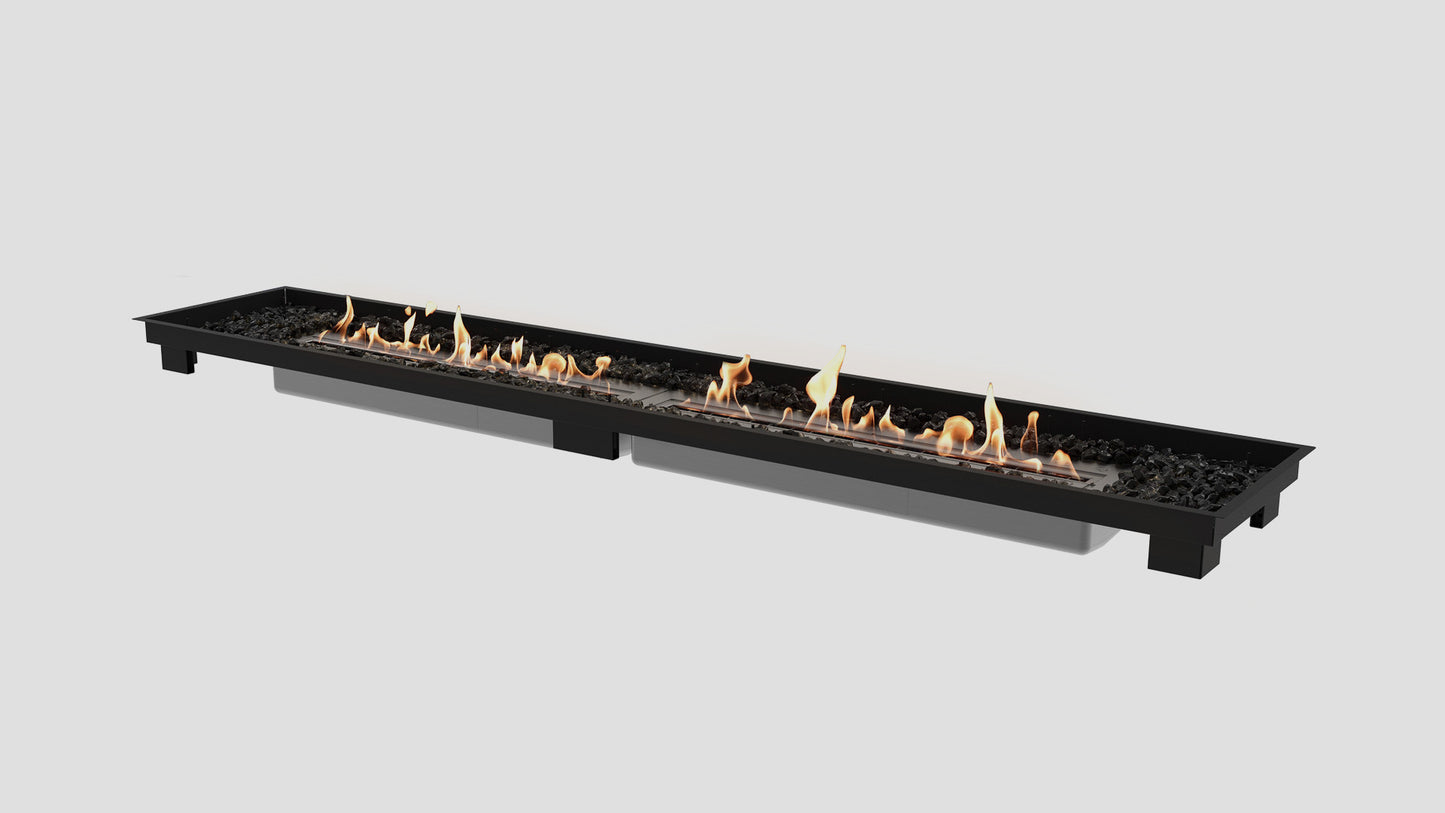

Linear 90 Fire Pit Kit

Indoor & Outdoor

The EcoSmart Linear 90 fire pit kit is a drop-in bioethanol burner kit for building your own fire pit table, bench or fire feature. It uses two XL900 burners: 18 litres of fuel, 8 to 13 hours of flame and about 8.8 kW.

The EcoSmart Linear 90 Fire Pit Kit is a large architectural fire feature designed to create a striking elongated flame across expansive residential or commercial spaces. Featuring two XL900 bioethanol burners, it produces twin linear flames that deliver impressive visual impact while maintaining the clean, modern aesthetic EcoSmart Fire is known for.

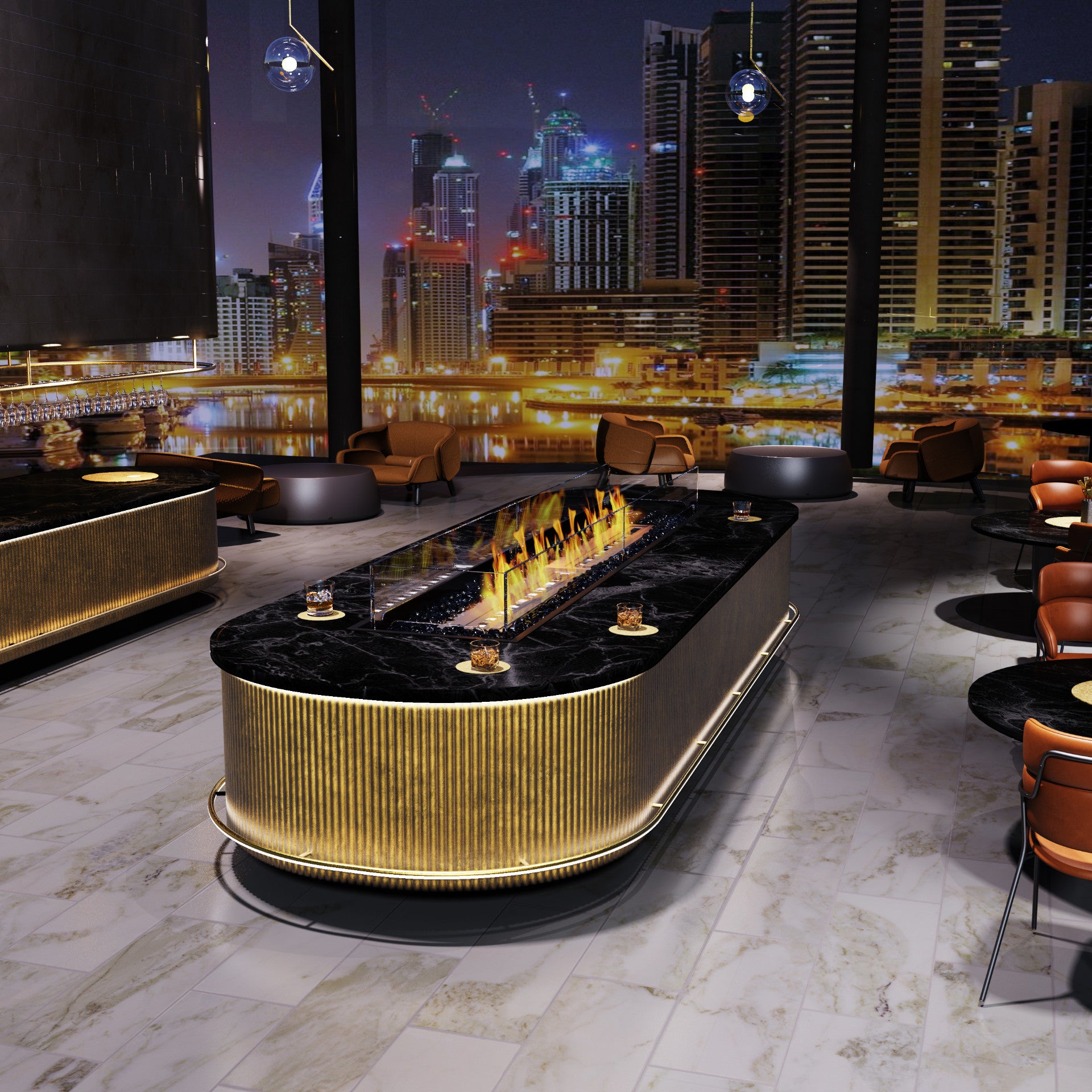

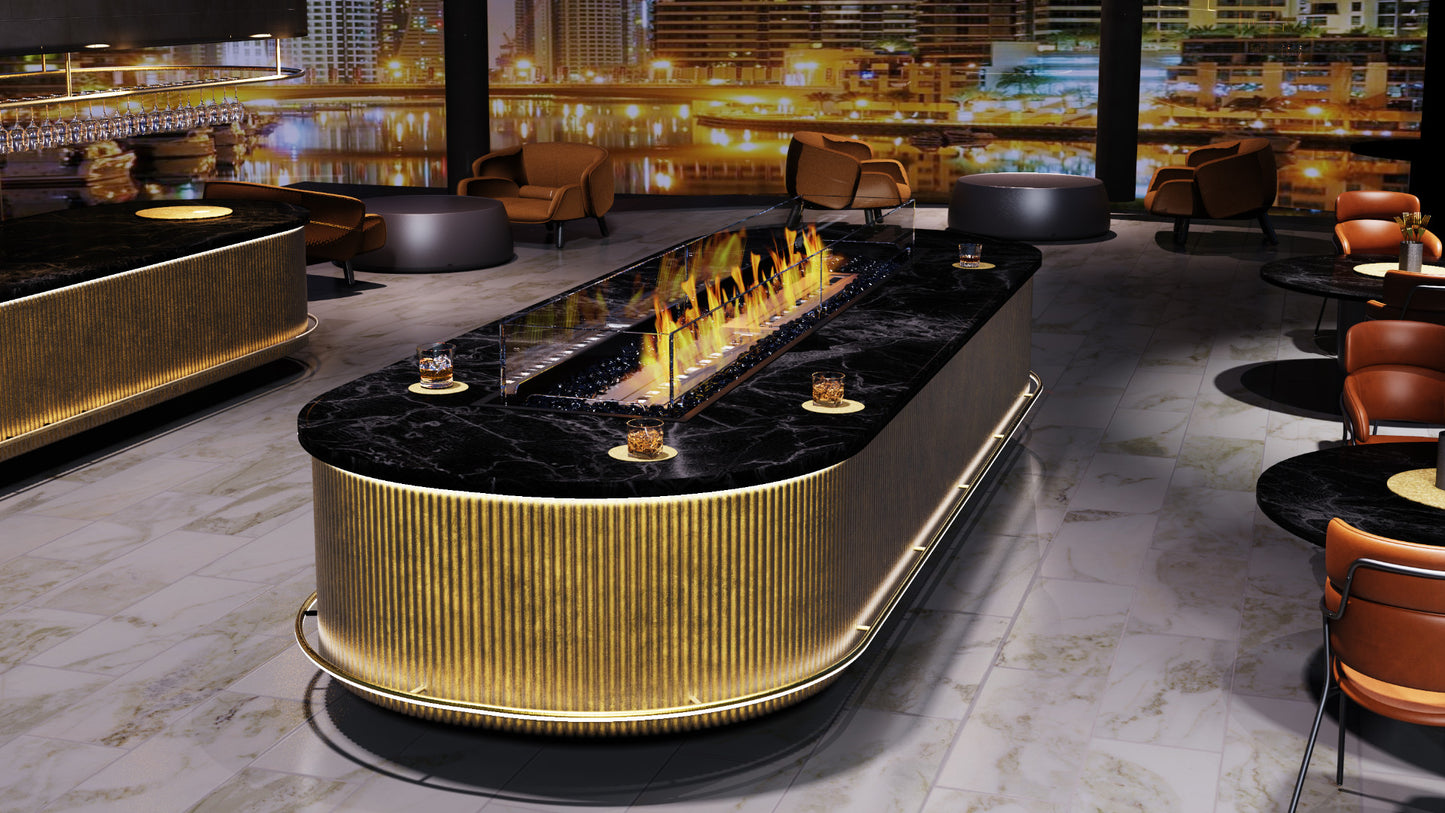

This streamlined fire pit system is engineered for custom installation within non combustible surfaces such as stone countertops, concrete benches, brick structures or outdoor dining tables. It allows architects, designers and homeowners to seamlessly integrate fire into bespoke outdoor kitchens, patio furniture or interior feature installations.

Because it uses clean burning bioethanol fuel, the Linear 90 produces a real flame without smoke, soot or ash and requires no chimney, gas connection or electricity. When configured correctly, it can be installed both indoors and outdoors, offering exceptional flexibility for modern living and entertaining spaces.

Key Features

Dual XL900 Bioethanol Burners

Powered by 2 × EcoSmart XL900 burners, creating two long flames that produce a dramatic linear fire feature ideal for larger installations.

Large Linear Fire Design

The 90 inch format delivers a bold architectural flame, perfect for room dividers, statement fire pits or expansive outdoor entertaining areas.

Custom Fire Pit Installation

Designed for installation into non combustible surfaces such as stone, concrete, brick or tile, enabling architects and designers to create bespoke fire pit tables or built-in fire features.

Clean Burning Bioethanol

Bioethanol fuel burns without smoke, soot or ash, creating a real flame while eliminating the mess and maintenance of wood burning fires.

Indoor or Outdoor Installation

Suitable for both indoor and outdoor fire features when installed according to EcoSmart guidelines.

Premium Materials

Tray constructed from black high temperature coated stainless steel with burners made from Grade 304 stainless steel for long-term durability and corrosion resistance.

Self Contained System

The Fire Pit Kit includes the key components required to create a custom fire feature, making installation simpler than gas or wood burning alternatives.

At a glance

• Burner: XL900 x2
• Fuel capacity: 18 L
• Burn time: 8 to 13 hours
• Heat output: About 8.8 kW (31.65 MJ/h)
• Heats on average: 120 m²
• Minimum room size: 220 m³

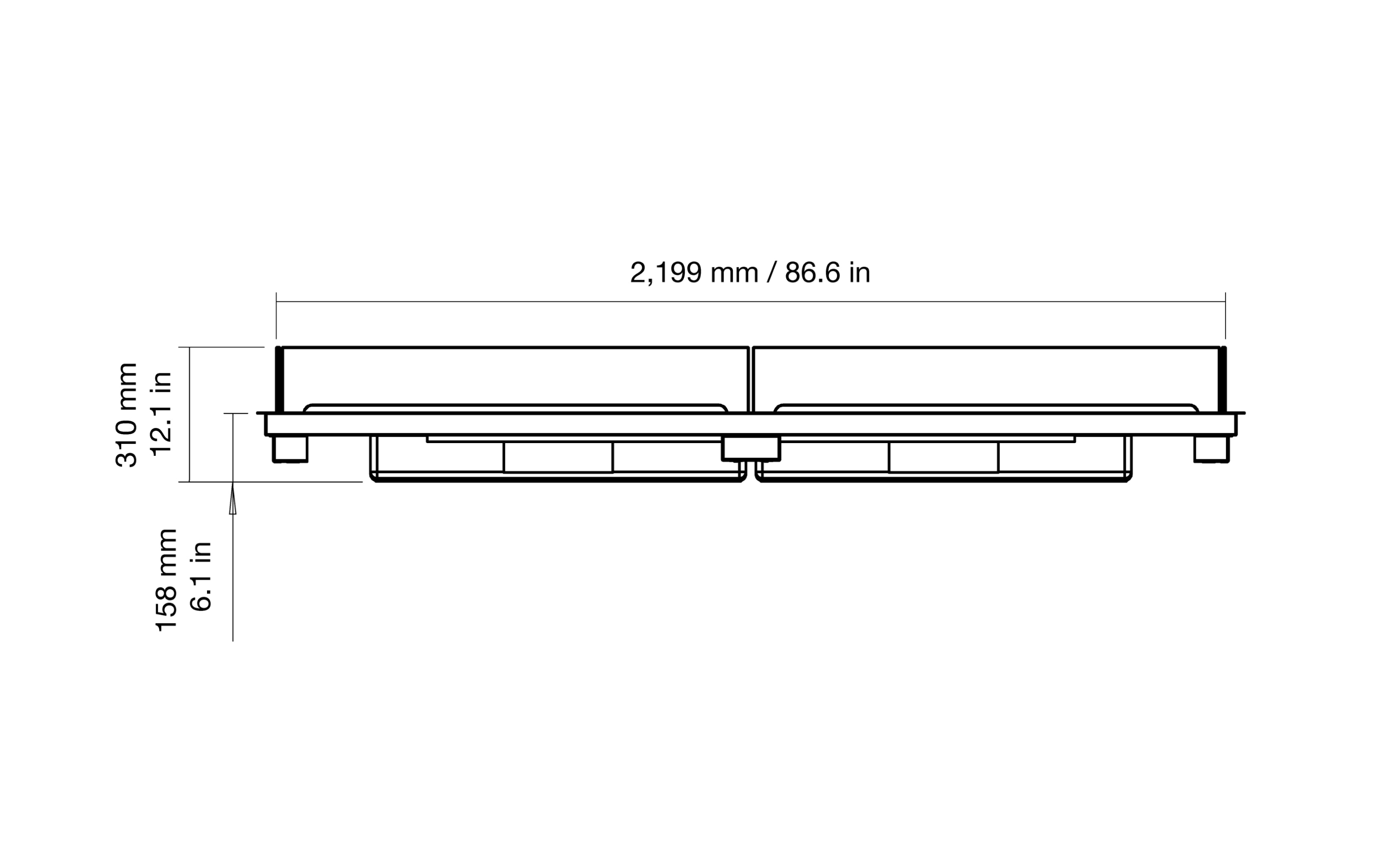

• Dimensions: 2,287 x 431 x 158 mm
• Weight: 55.64 kg
• Materials: Stainless Steel (Black, High-Temp Coated) Tray; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor or outdoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

Outdoors it is ready to use. EcoSmart requires additional parts for indoor use. Ask us before you buy for indoor use.

Included Accessories

The Linear 90 Fire Pit Kit includes the following accessories:

• Black Glass Charcoal decorative media
• XL burner baffles for flame stability
• Lighting rod
• Fire lighter
• 5L Jerry Can
• Bottle adaptor

Goes with

• Glass Cover Plate, size L50
• Glass Fire Screen (ask us for the size)
• Silicone Burner Cover (XL900)
• Lighting Rod
• Bioethanol fuel
• All fire pit kits
• Guide: Can you put a fire pit on a timber deck?

Delivered across New Zealand. Call 0800 468 836 to check the Linear 90 Fire Pit Kit is lit in our Takapuna showroom, open seven days.
