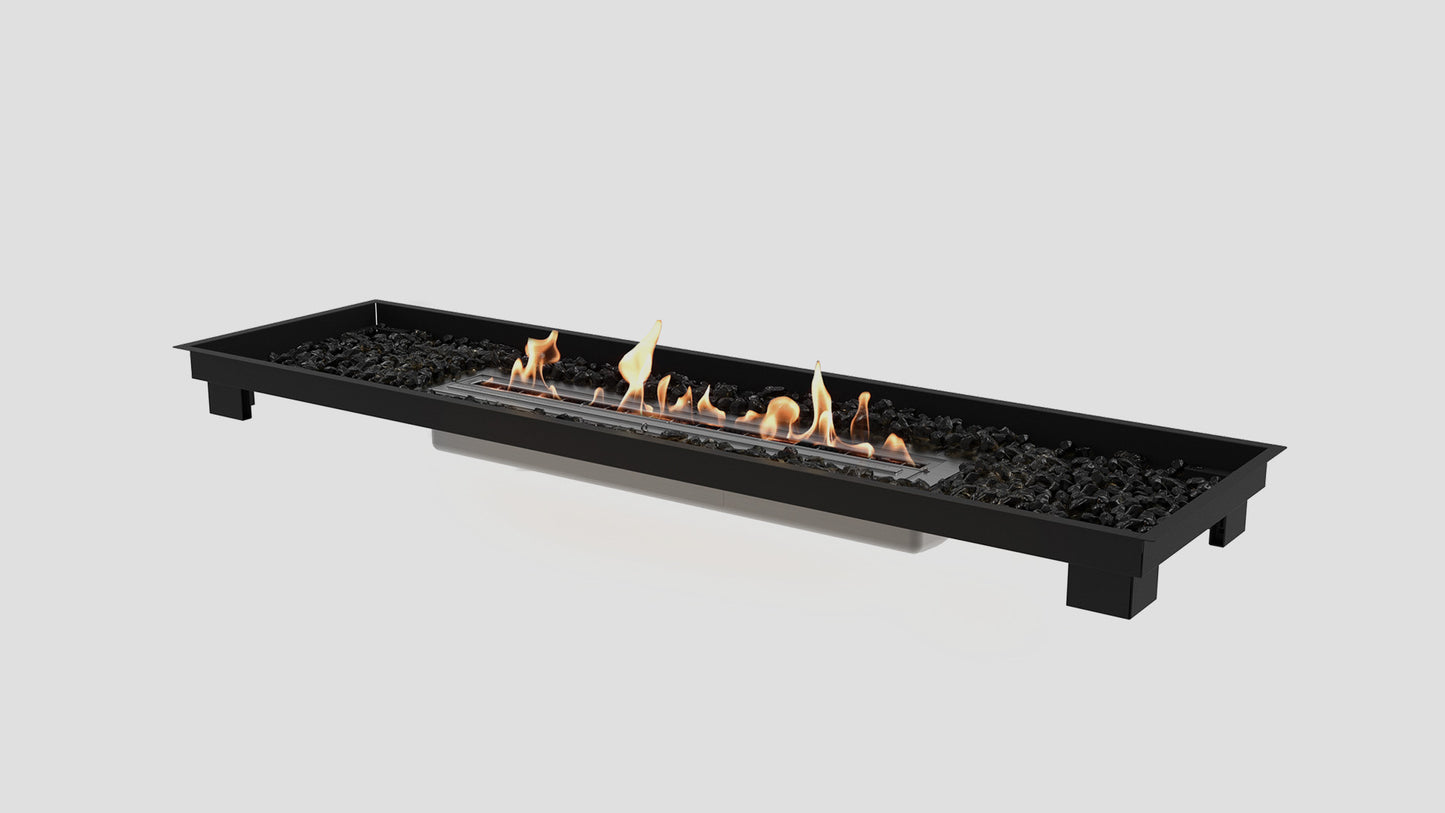

Linear 65 Fire Pit Kit

Indoor & Outdoor

The EcoSmart Linear 65 fire pit kit is a drop-in bioethanol burner kit for building your own fire pit table, bench or fire feature. It uses the XL900 burner: 9 litres of fuel, 8 to 13 hours of flame and about 4.4 kW.

The EcoSmart Linear 65 Fire Pit Kit is a modern built in fire feature designed to create an elegant elongated flame in custom indoor or outdoor installations. Powered by the award winning XL900 bioethanol burner, it delivers a vibrant linear flame that enhances contemporary residential or commercial spaces.

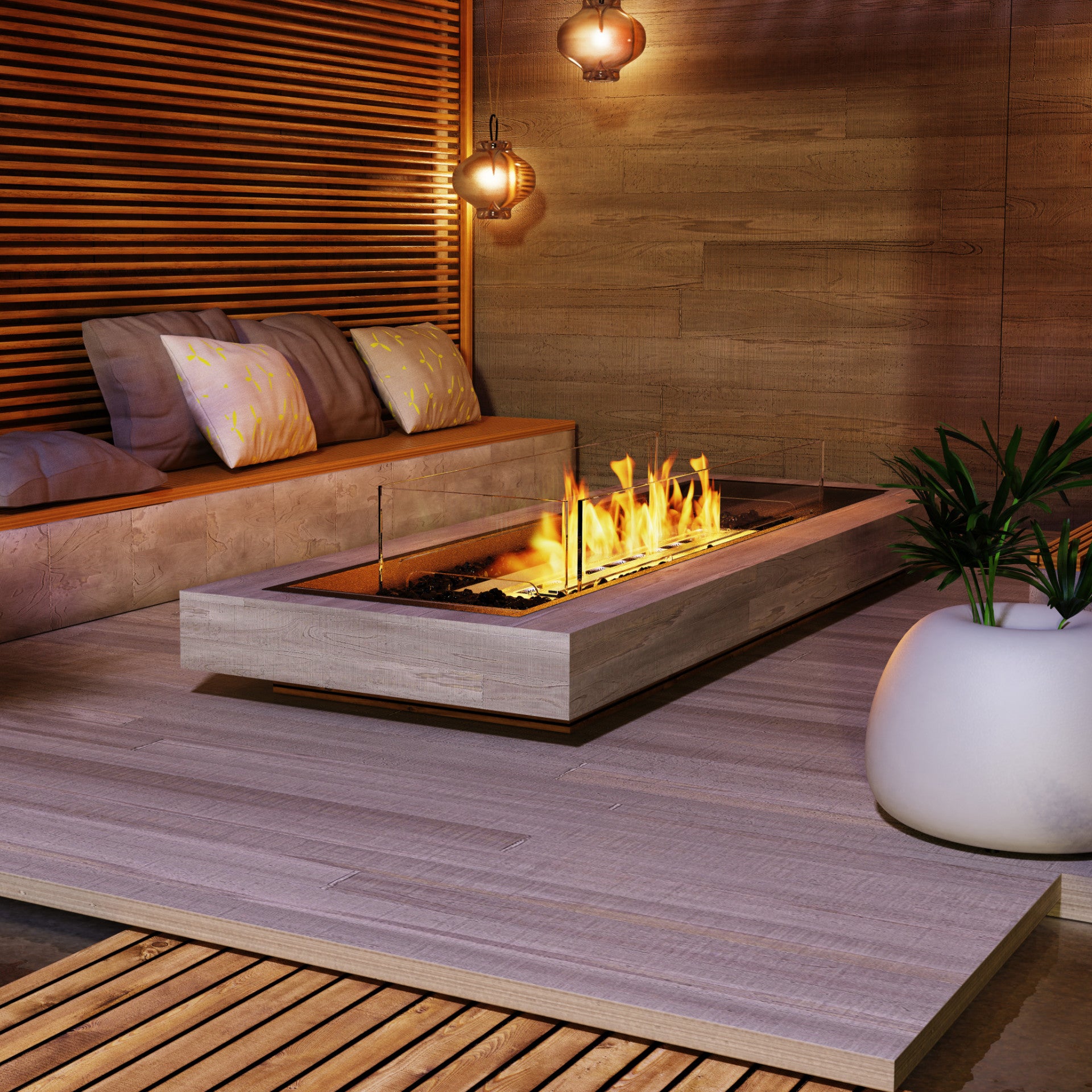

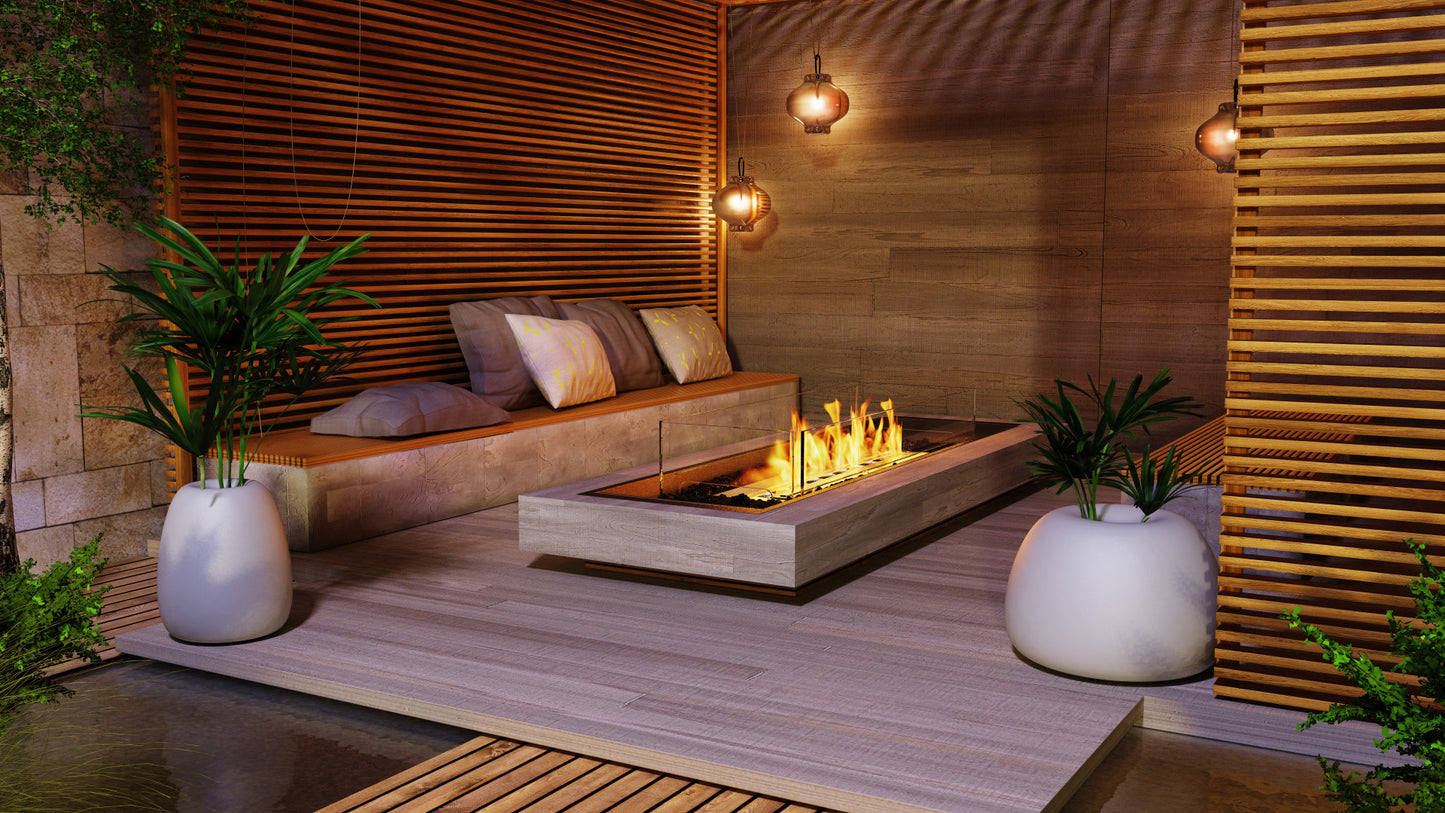

This streamlined fire pit system is engineered for installation within non combustible surfaces such as stone countertops, concrete benches, brick structures or outdoor dining tables. This allows architects, designers and homeowners to incorporate fire seamlessly into bespoke outdoor kitchens, patio furniture or architectural features.

Because it uses clean burning bioethanol fuel, the Linear 65 produces a real flame without smoke, soot or ash and requires no chimney, gas connection or electricity. This makes it suitable for both indoor and outdoor fire features when configured correctly, offering flexibility for modern living and entertaining spaces.

Key Features

XL900 Bioethanol Burner

Powered by the EcoSmart XL900 burner, designed to produce a long, vibrant flame ideal for linear fire features and custom architectural installations.

Elegant Linear Flame

The 65 inch design produces a striking horizontal flame that creates a sophisticated focal point for patios, outdoor kitchens or open plan interiors.

Custom Fire Pit Installation

Designed to be installed into non combustible surfaces such as stone, concrete, brick or tile, giving designers complete flexibility to create bespoke fire pits or fire pit tables.

Clean Burning Bioethanol

Bioethanol fuel burns without smoke, soot or ash, creating a real flame while eliminating the mess associated with wood burning fires.

Indoor or Outdoor Installation

Suitable for both indoor and outdoor applications when installed according to EcoSmart guidelines.

Premium Materials

Constructed with a black high temperature coated stainless steel tray and Grade 304 stainless steel burner, ensuring durability and corrosion resistance.

Complete Fire Pit System

The Linear 65 Fire Pit Kit includes the key components required to create a custom fire feature, simplifying installation compared with gas or wood burning alternatives.

At a glance

• Burner: XL900
• Fuel capacity: 9 L
• Burn time: 8 to 13 hours
• Heat output: About 4.4 kW (15.83 MJ/h)
• Heats on average: 60 m²
• Minimum room size: 110 m³

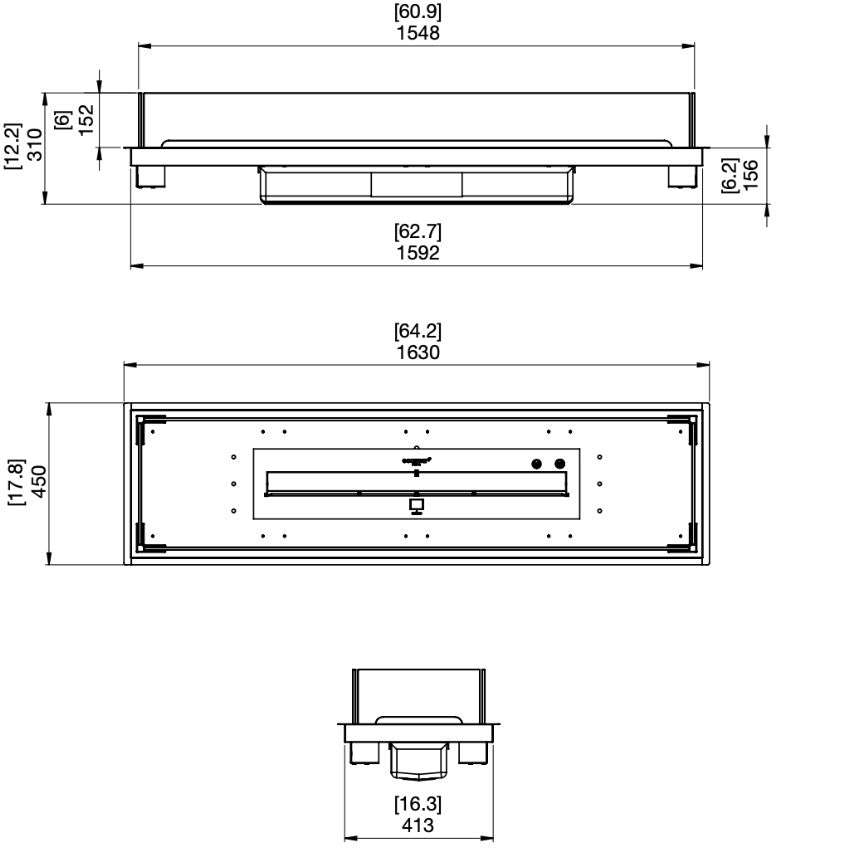

• Dimensions: 1,630 x 451 x 158 mm
• Weight: 34.94 kg
• Materials: Stainless Steel (Black, High-Temp Coated) Tray; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor or outdoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

Outdoors it is ready to use. EcoSmart requires additional parts for indoor use. Ask us before you buy for indoor use.

Included Accessories

The Linear 65 Fire Pit Kit includes the following accessories:

• Black Glass Charcoal decorative media
• XL burner baffles for flame stability
• Lighting rod
• Fire lighter
• 5L Jerry Can
• Bottle adaptor

Goes with

• Glass Cover Plate, size L65

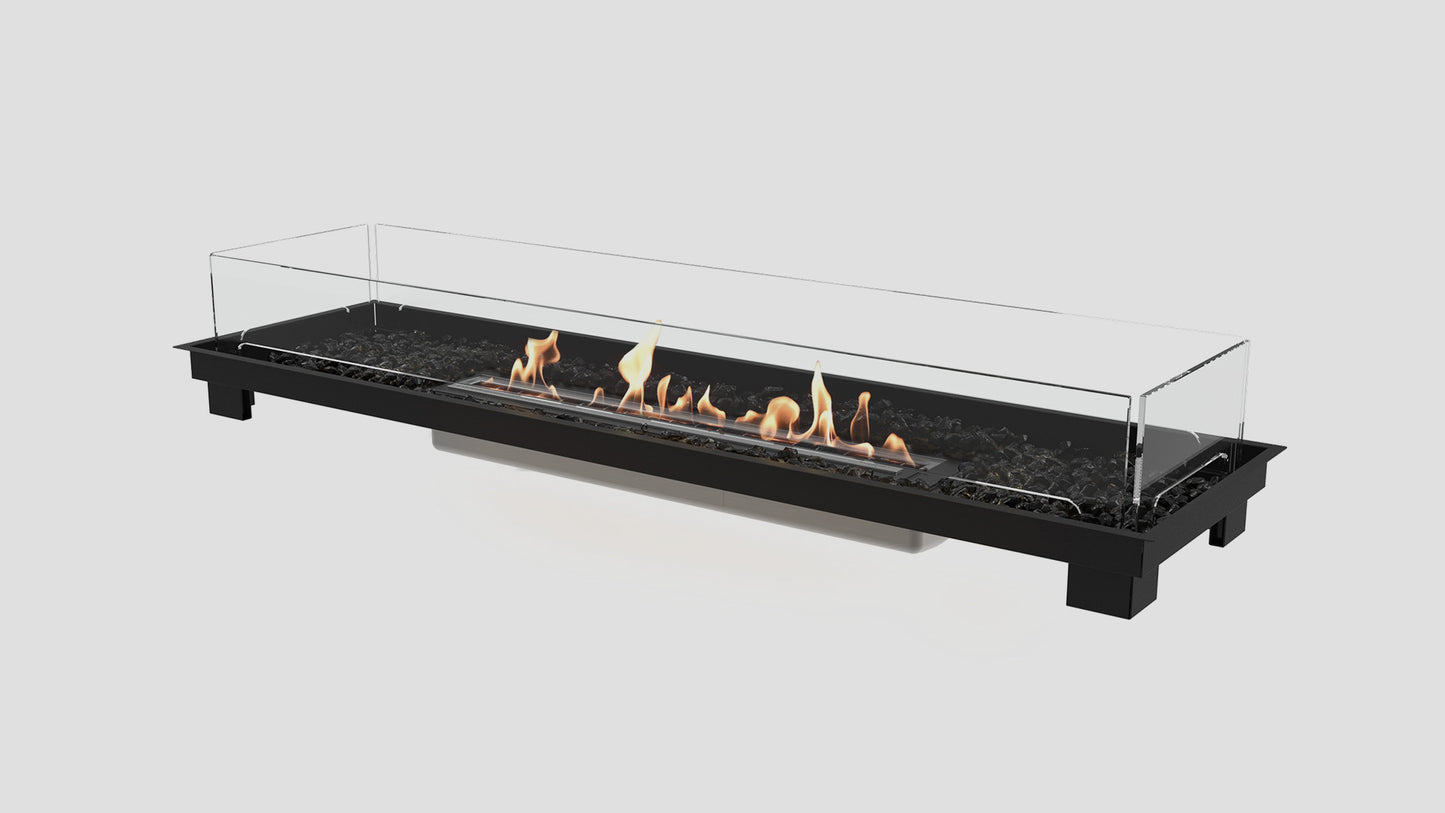

• Glass Fire Screen (ask us for the size)
• Silicone Burner Cover (XL900)
• Lighting Rod
• Bioethanol fuel
• All fire pit kits
• Guide: Can you put a fire pit on a timber deck?

Delivered across New Zealand. Call 0800 468 836 to check the Linear 65 Fire Pit Kit is lit in our Takapuna showroom, open seven days.
