Linear 50 Fire Pit Kit

Indoor & Outdoor

The EcoSmart Linear 50 fire pit kit is a drop-in bioethanol burner kit for building your own fire pit table, bench or fire feature. It uses the XL900 burner: 9 litres of fuel, 8 to 13 hours of flame and about 4.4 kW.

The EcoSmart Linear 50 Fire Pit Kit is a compact linear fire feature designed to bring a modern architectural flame into smaller residential or commercial spaces. Featuring the powerful XL900 bioethanol burner, it produces a clean, elongated flame that creates a striking focal point for contemporary indoor or outdoor environments.

This streamlined fire pit system is engineered for custom installations within non combustible surfaces such as stone countertops, concrete benches, brick structures or outdoor dining tables, allowing architects, designers and homeowners to integrate fire seamlessly into bespoke designs.

Because it uses clean burning bioethanol fuel, the Linear 50 produces a real flame without smoke, soot or ash and requires no chimney, gas connection or electricity. This makes it suitable for both indoor and outdoor installations when configured correctly, offering maximum flexibility for modern living spaces.

Key Features

XL900 Bioethanol Burner
Powered by the EcoSmart XL900 burner to produce a vibrant, linear flame with impressive burn time and heat output.

Compact Linear Fire Design
The smaller footprint makes the Linear 50 ideal for custom fire pit tables, outdoor dining areas or built in fire features where space is limited but visual impact is important.

Custom Fire Pit Installation
Designed for installation into non combustible surfaces such as stone, concrete, brick or tile.
Perfect for bespoke fire pits, architectural fireplaces or outdoor entertaining spaces.

Clean Burning Bioethanol
Uses renewable bioethanol fuel that burns without smoke, soot or ash.
No chimney, flue or gas connection required.

Indoor or Outdoor Installation
Suitable for both indoor and outdoor fire features when installed according to EcoSmart guidelines.

Premium Materials
Tray constructed from black high temperature coated steel.
Burner made from Grade 304 stainless steel for durability and corrosion resistance.

Self Contained System
Fire Pit Kit includes the main components required to create a custom fire feature, making installation simpler than traditional gas or wood burning systems.

At a glance

• Burner: XL900
• Fuel capacity: 9 L
• Burn time: 8 to 13 hours
• Heat output: About 4.4 kW (15.83 MJ/h)
• Heats on average: 60 m²
• Minimum room size: 110 m³

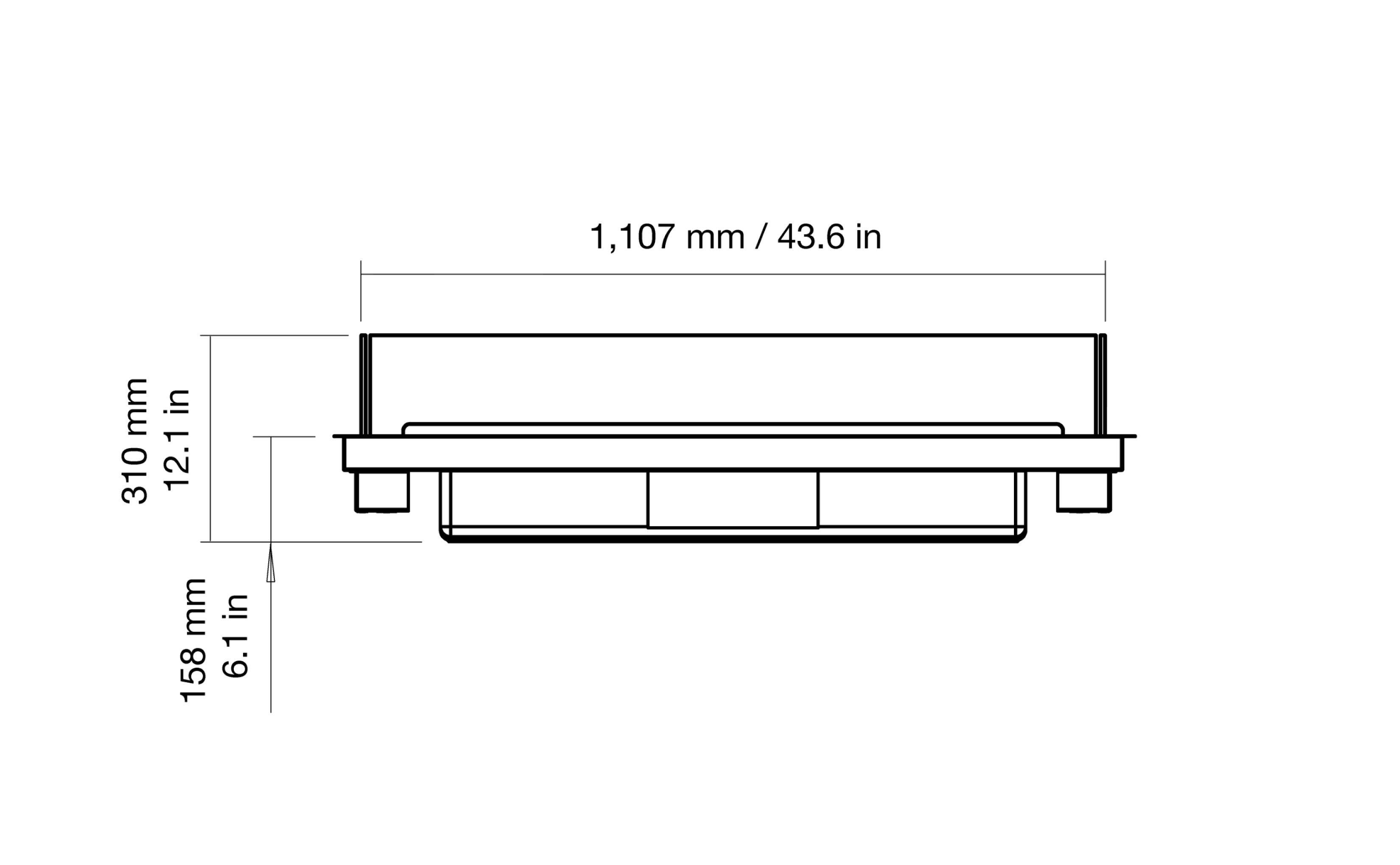

• Dimensions: 1,196 x 431 x 158 mm
• Weight: 31.44 kg
• Materials: Stainless Steel (Black, High-Temp Coated) Tray; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor or outdoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

Outdoors it is ready to use. EcoSmart requires additional parts for indoor use. Ask us before you buy for indoor use.

Included Accessories

The Linear 50 Fire Pit Kit includes the following accessories:

• Black Glass Charcoal decorative media
• XL burner baffles for flame stability
• Lighting rod
• Fire lighter
• 5L Jerry Can
• Bottle adaptor
