Heritage Grate 50

Indoor

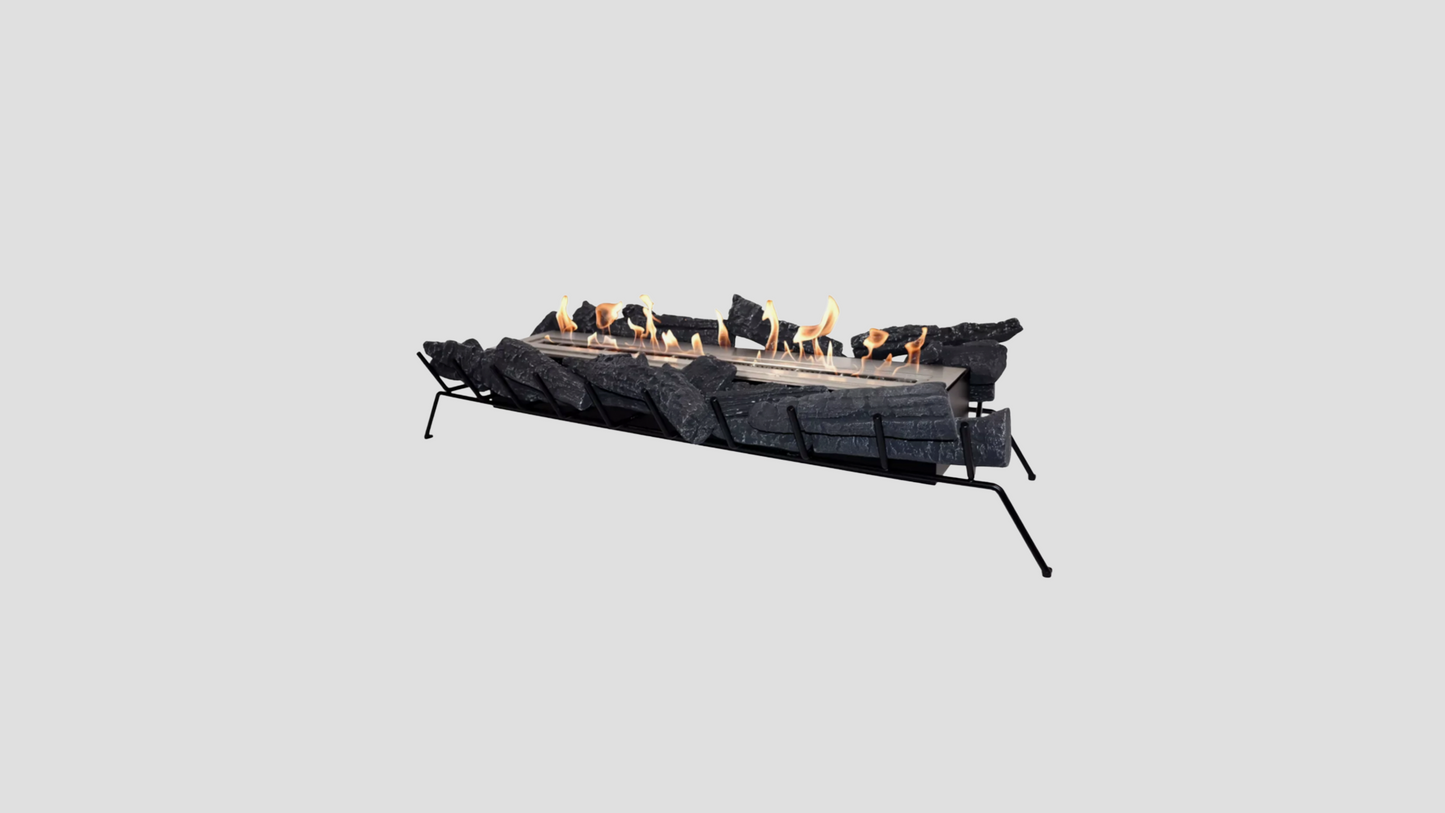

The EcoSmart Heritage Grate 50 is a bioethanol fireplace grate that converts an existing fireplace opening to a clean-burning real flame, without using the chimney. Its XL900 burner holds 9 litres and gives 8 to 13 hours of flame at about 4.4 kW. Indoor use.

The EcoSmart Heritage Grate 50 blends the timeless charm of a traditional fireplace with the innovation of modern bioethanol technology. Designed to sit inside an existing hearth, this fireplace grate allows homeowners to convert a wood-burning or unused fireplace into a clean-burning ethanol fire in minutes.

Featuring a classic iron-style grate and ceramic fire-rated logs, the Heritage Grate 50 recreates the appearance of a traditional open fire while eliminating smoke, ash and soot. The integrated XL900 bioethanol burner produces a long, elegant flame and provides comfortable warmth without the need for a chimney, gas connection or electricity.

Perfect for heritage homes, renovations and modern interiors, the Heritage Grate 50 offers a simple way to modernise an existing fireplace while maintaining its authentic aesthetic.

Key Features

Authentic Fireplace Aesthetic

• Classic iron style grate design with ceramic fire rated logs replicates the look of a wood burning fire.
• Preserves the character of traditional fireplaces while upgrading functionality.

Powerful XL900 Bioethanol Burner

• Equipped with the EcoSmart XL900 burner for a long, linear flame.
• Provides up to 13 hours of burn time.

Quick Fireplace Conversion

• Designed to sit directly inside an existing fireplace on a level surface.
• Converts wood or gas fireplaces into modern ethanol fires with minimal installation.

Clean Burning Bioethanol

• Runs on renewable bioethanol fuel, producing a beautiful flame without smoke, soot or ash.
• Can operate with or without an active chimney.

Durable Construction

• Built from zinc sealed mild steel with high temperature powder coating for long lasting durability.

Included Accessories

The Heritage Grate 50 includes:

• Decorative ceramic fire rated log set
• XL900 burner
• Fire lighter
• Lighting rod
• 5L Jerry Can
• Bottle adaptor

At a glance

• Burner: XL900
• Fuel capacity: 9 L
• Burn time: 8 to 13 hours
• Heat output: About 4.4 kW (15.83 MJ/h)
• Heats on average: 60 m²
• Minimum room size: 110 m³

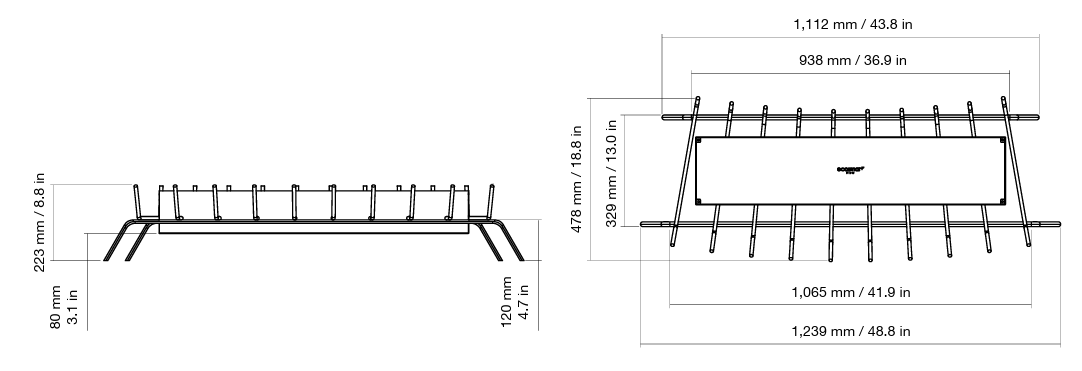

• Dimensions: W 1,239 mm x D 478 mm x H 223 mm
• Weight: 25.1 kg
• Materials: 1.2mm SECC steel tray and 10mm SECC steel bars with Hi-temp Powder Coat; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

EcoSmart rates this model for indoor use only.
