Heritage Grate 25

Indoor

The EcoSmart Heritage Grate 25 is a bioethanol fireplace grate that converts an existing fireplace opening to a clean-burning real flame, without using the chimney. Its BK5 burner holds 5 litres and gives 7 to 11 hours of flame at about 3.8 kW. Indoor use.

The EcoSmart Heritage Grate 25 combines the nostalgic charm of a traditional fireplace with the convenience and efficiency of modern bioethanol technology. Designed to sit inside existing hearths, this fireplace grate allows homeowners to convert a wood burning or unused fireplace into a clean burning ethanol fire in minutes.

Featuring a classic iron style grate with ceramic fire rated logs, the Heritage Grate 25 recreates the timeless appearance of a wood fire while eliminating smoke, ash and soot. Powered by EcoSmart’s BK5 bioethanol burner, it delivers a vibrant flame and comfortable warmth without requiring a chimney, gas connection or electricity.

Ideal for renovations, heritage homes and apartments, this compact fireplace insert provides an elegant way to modernise traditional fireplaces while maintaining their original character.

Key Features

Authentic Fireplace Appearance

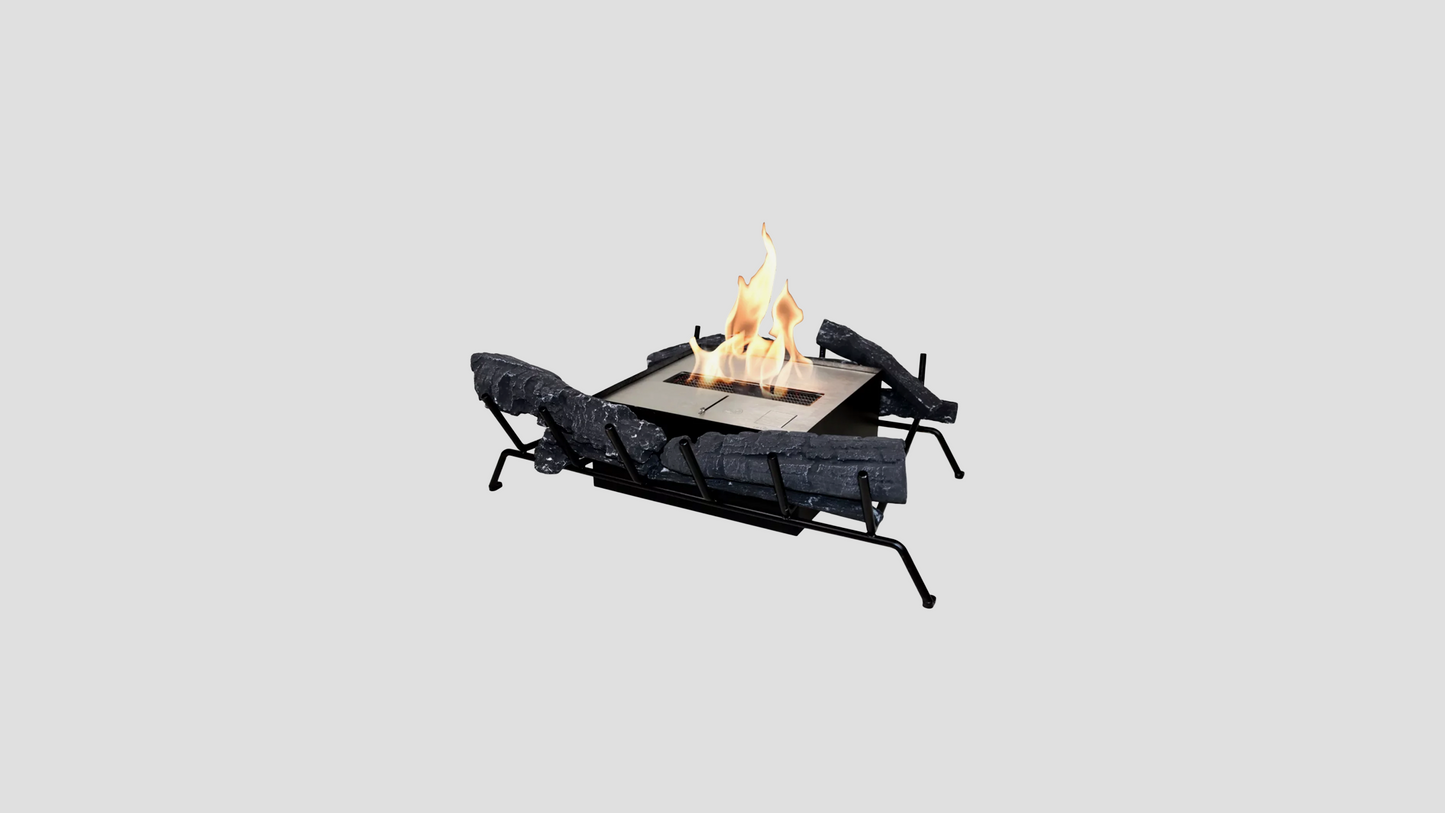

• Classic iron style grate with ceramic fire logs recreates the look of a traditional open fire.
• Perfect for preserving the aesthetic of heritage fireplaces.

Clean Burning Bioethanol Flame

• Powered by the EcoSmart BK5 ethanol burner for a beautiful smokeless flame.
• Produces no ash, soot or smoke.

Quick Fireplace Conversion

• Simply place the grate into an existing fireplace and add bioethanol fuel.
• No flue modifications, gas lines or electrical connections required.

Durable Construction

• Made from zinc sealed, high temp powder coated mild steel with a stainless steel burner for long term durability.

Renewable Fuel

• Uses renewable bioethanol fuel for a cleaner alternative to traditional fireplaces.
• Burns efficiently while providing warmth and ambience.

At a glance

• Burner: BK5
• Fuel capacity: 5 L
• Burn time: 7 to 11 hours
• Heat output: About 3.8 kW (13.72 MJ/h)
• Heats on average: 35 m²
• Minimum room size: 70 m³

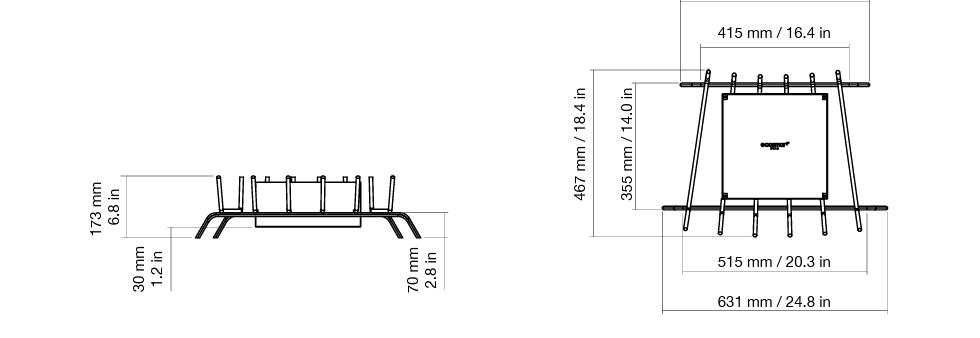

• Dimensions: L 631 mm x W 467 mm x H 173 mm
• Weight: 13.4 kg
• Materials: Mild Steel (Zinc Sealed, High-Temp Powder Coat) Surround
• Use: Indoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

EcoSmart rates this model for indoor use only.

Included Accessories

The Heritage Grate 25 includes:

• Ceramic fire rated log set
• Stainless steel BK5 burner
• Fire lighter
• Lighting rod
• 5L Jerry Can
• Bottle adaptor for refuelling

Goes with

• Lighting Rod
• Bioethanol fuel
• Built-in range
• Burner size guide
• All fireplace inserts and grates
• Guide: Bioethanol vs gas fireplace: which is right for your NZ home?

Delivered across New Zealand. Call 0800 468 836 to check the Heritage Grate 25 is lit in our Takapuna showroom, open seven days.
