Grate 36

Indoor

The EcoSmart Grate 36 is a bioethanol fireplace grate that converts an existing fireplace opening to a clean-burning real flame, without using the chimney. Its XL700 burner holds 7 litres and gives 9 to 12 hours of flame at about 4 kW. Indoor use.

The EcoSmart Grate 36 is the largest model in the EcoSmart Grate Series, designed to bring new life to traditional fireplaces. Featuring a bold architectural design and a long, elegant flame, this fireplace grate transforms an unused wood burning hearth into a clean burning bioethanol fire.

Constructed from durable Fluid™ concrete with a stainless steel burner, the Grate 36 offers both strength and modern aesthetics. The integrated XL700 bioethanol burner produces a striking linear flame while eliminating smoke, soot and ash.

With its simple installation and vent free operation, the Grate 36 is ideal for homeowners looking to upgrade an existing fireplace without complex building work.

Key Features

XL700 Bioethanol Burner

• Equipped with the EcoSmart XL700 burner delivering a long, elegant flame and strong heat output.
• Provides up to 12 hours of burn time per refill.

Convert Existing Fireplaces

• Designed to sit directly inside traditional fireplace cavities.
• Quickly transforms wood burning fireplaces into modern ethanol fires.

Clean Burning Fuel

• Runs on bioethanol fuel, producing a smokeless flame with no soot or ash.
• Can operate with or without a functioning chimney.

Durable Construction

• Made from Fluid™ concrete composite with Grade 304 stainless steel burner components.
• Designed for long term durability and minimal maintenance.

Simple Installation

• Place the grate on a level platform within your fireplace and add bioethanol fuel to begin operation.

At a glance

• Burner: XL700
• Fuel capacity: 7 L
• Burn time: 9 to 12 hours
• Heat output: About 4 kW (14.4 MJ/h)
• Heats on average: 50 m²
• Minimum room size: 90 m³

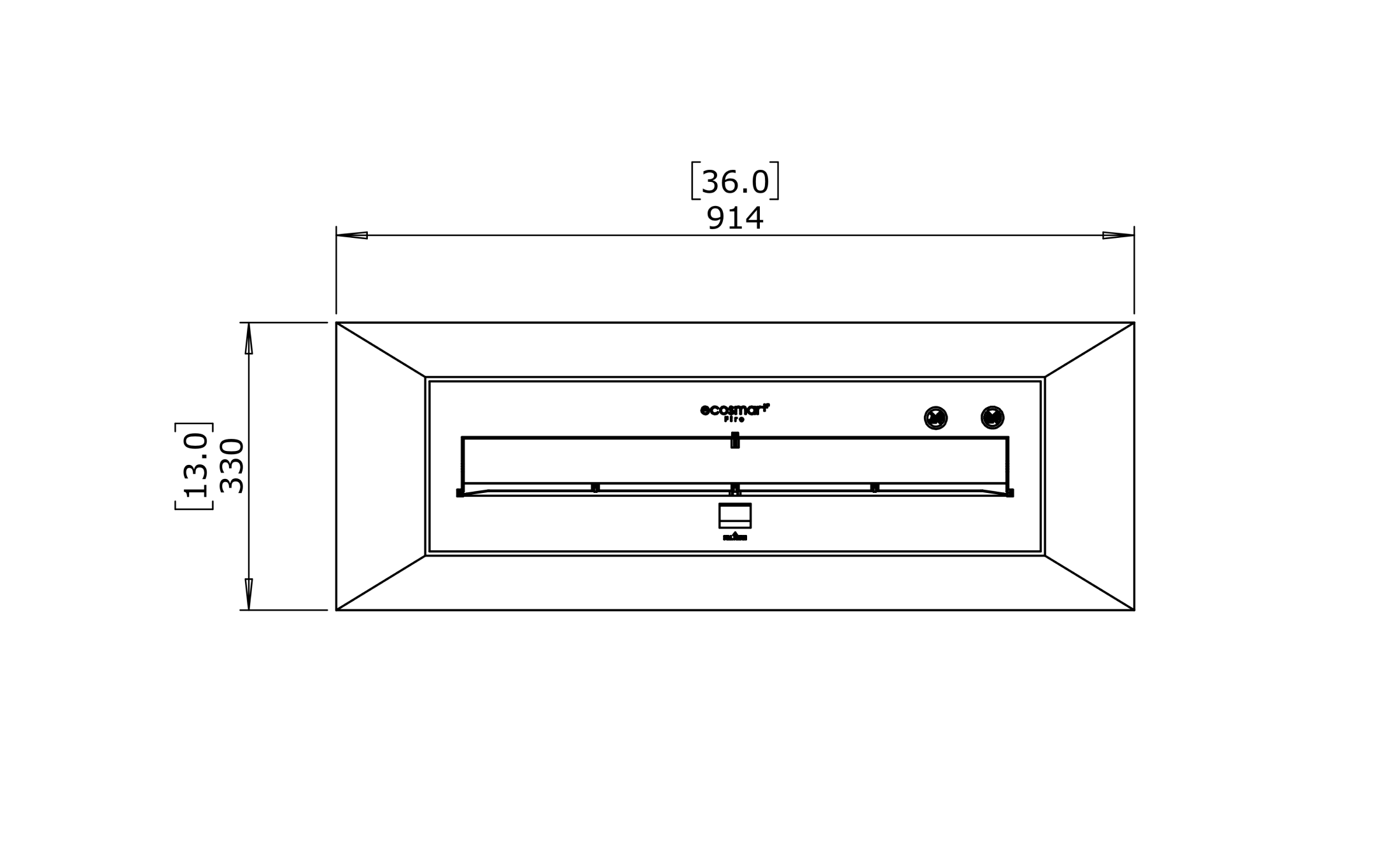

• Dimensions: L 914 mm x W 330 mm x H 156 mm
• Weight: 20.66 kg
• Materials: Fluid™ Concrete Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

EcoSmart rates this model for indoor use only.

Included Accessories

The EcoSmart Grate 36 includes:

• Jerry Can 5L
• Lighting rod
• Fire lighter
• Bottle adaptor
• XL baffles
