Grate 18

Indoor

The EcoSmart Grate 18 is a bioethanol fireplace grate that converts an existing fireplace opening to a clean-burning real flame, without using the chimney. Its AB8 burner holds 8 litres and gives 7 to 9 hours of flame at about 6 kW. Indoor use.

The EcoSmart Grate 18 offers a simple and elegant way to upgrade traditional fireplaces with modern bioethanol technology. Designed to sit inside an existing fireplace cavity, this compact fireplace grate allows homeowners to convert a wood-burning or unused fireplace into a clean-burning ethanol fire in minutes.

Featuring a sleek graphite Fluid™ concrete surround and a powerful AB8 round bioethanol burner, the Grate 18 delivers the ambience of a real flame without the smoke, soot or ash associated with wood fires.

With no gas connection, chimney modification or electricity required, this vent free fireplace insert is ideal for smaller hearths, apartments and renovation projects where traditional fireplaces are no longer practical.

Key Features

Powerful AB8 Bioethanol Burner

• Equipped with the EcoSmart AB8 burner, producing a vibrant circular flame.
• Provides up to 9 hours of burn time per refill.

Revives Existing Fireplaces

• Designed to sit directly inside traditional fireplace cavities.
• Instantly converts wood burning or unused fireplaces into modern ethanol fires.

Clean Burning Bioethanol

• Uses renewable bioethanol fuel that burns without smoke, soot or ash.
• Can operate with or without an active chimney.

Durable Construction

• Made from Fluid™ concrete composite with Grade 304 stainless steel burner components for durability and performance.

Simple Installation

• Place the grate on a level surface within the fireplace and add fuel to begin operation.
• No flues, gas lines or electrical connections required.

At a glance

• Burner: AB8
• Fuel capacity: 8 L
• Burn time: 7 to 9 hours
• Heat output: About 6 kW (21.56 MJ/h)
• Heats on average: 60 m²
• Minimum room size: 116 m³

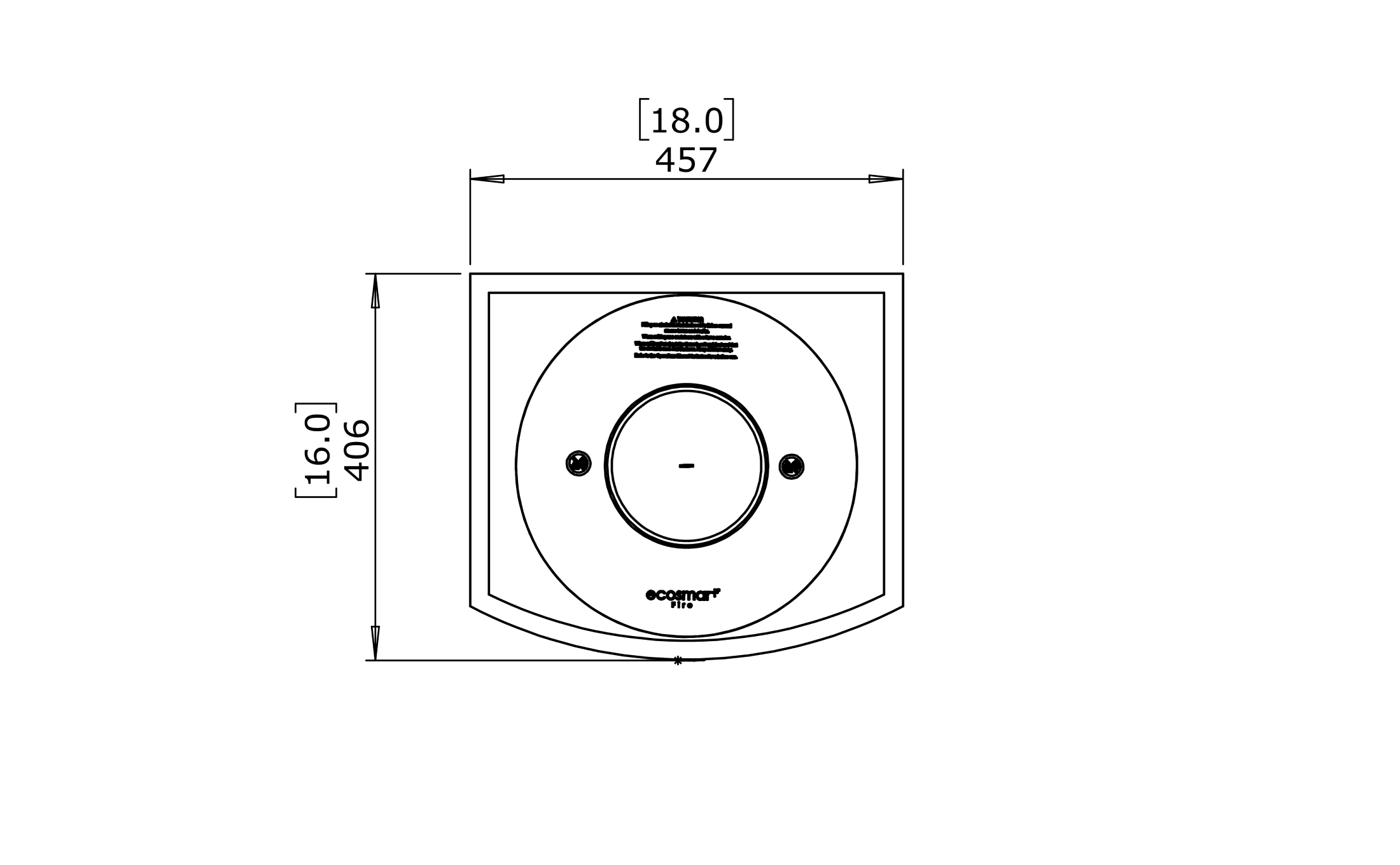

• Dimensions: L 457 mm x W 406 mm x H 200 mm
• Weight: 16.44 kg
• Materials: Fluid™ Concrete Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner
• Use: Indoor
• Standards listed by EcoSmart: UL 1370, EN 16647, ACCC

Use and safety

EcoSmart rates this model for indoor use only. With the efficiency ring fitted, as required indoors, EcoSmart's rating is 3.8 kW and 9 to 11 hours.

Included Accessories

The EcoSmart Grate 18 includes:

• AB8 efficiency ring
• Jerry Can
• Bottle adaptor
• Lighting rod
• Fire lighter
